EatonUninterruptible Power Supplies (UPSs)

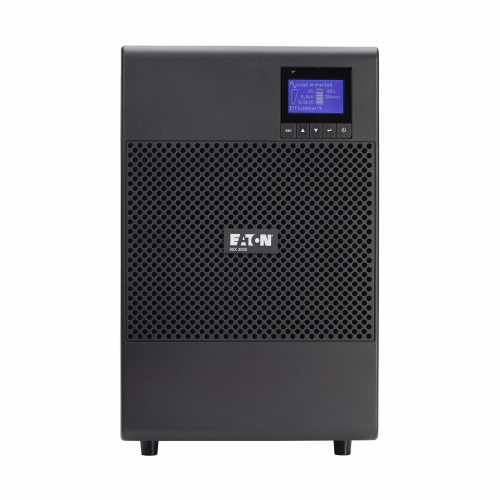

9SX UPS Online UPS 3000V
- Double-conversion (Online)
- 3 kVA 2700 W
- Tower Black, Grey
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 3 kVA
- Output power
- 2700 W
- Input operation voltage (min)
- 100 V
- Input operation voltage (max)
- 276 V
- Input frequency
- 40/70 Hz
- Efficiency (On-line mode)
- 89%
Ports & interfaces
- AC outlet types
- NEMA 5–20R
- USB port
- Yes
- Serial interface
- Yes
- Serial interface type
- RS-232
Design
- Form factor
- Tower
- Product colour
- Black, Grey
- Display type
- LCD
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
Packaging content
- Cables included
- RS-232
- Manual
- Yes
Weight & dimensions
- Width
- 214 mm
- Depth
- 412 mm
- Height
- 346 mm
