Drag to turn · 5 views
EatonUninterruptible Power Supplies (UPSs)

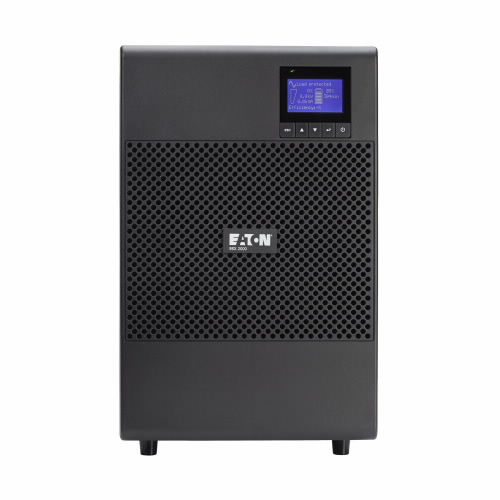

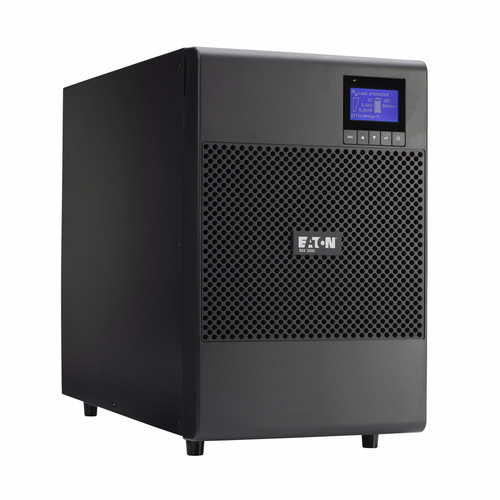

9SX UPS 2000VA 1800 Watt
- Double-conversion (Online)
- 2 kVA 1800 W
- Waveform: Sine
- 9 AC outlet(s)
- Tower Black
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 2 kVA
- Output power
- 1800 W
- Waveform
- Sine
- Input operation voltage (min)
- 120 V
- Input operation voltage (max)
- 276 V
- Input frequency
- 40/70 Hz
- Output operation voltage (min)
- 100 V
- Output operation voltage (max)
- 125 V
- Output frequency
- 50/60 Hz
- Noise level
- 49 dB

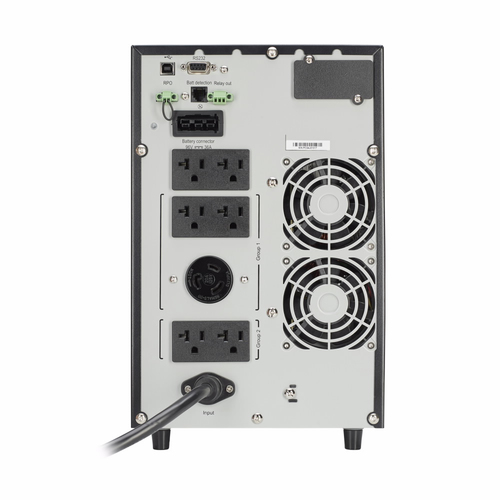

Ports & interfaces
- AC outlet types
- C13 coupler, C14 coupler
- Power plug
- C14 coupler
- AC outlets quantity
- 9 AC outlet(s)
- USB port
- Yes
- Serial interface
- Yes
- Serial interface type
- RS-232
Design
- Form factor
- Tower
- Product colour
- Black
- Display type
- LCD
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
Certificates
- Certification
- IEC/EN 62040 -2 , FCC B, CISPR22 B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC
Safety regulation & standards
- Safety
- IEC/EN 62040-1, UL 1778, CSA 22.2
Weight & dimensions
- Width
- 214 mm
- Depth
- 412 mm
- Height
- 346 mm
- Weight
- 33 kg
