EatonUninterruptible Power Supplies (UPSs)

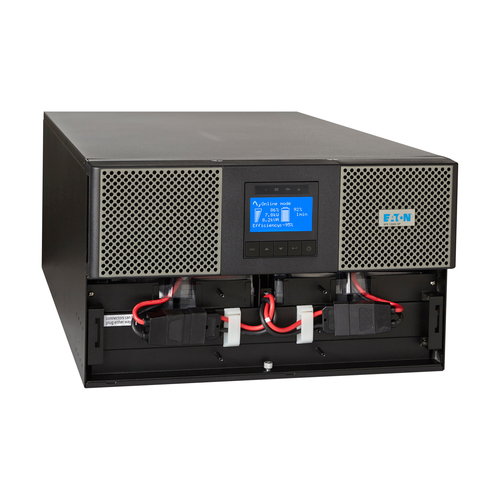

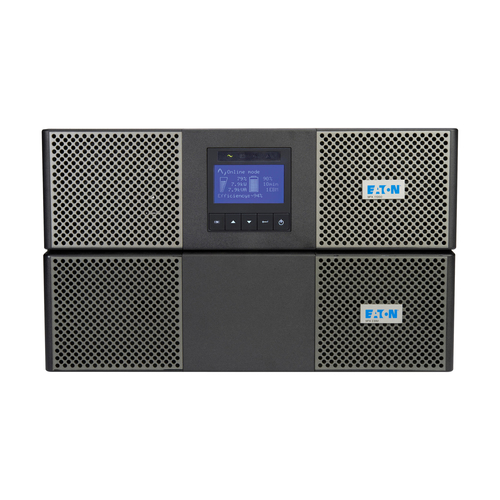

9PX 8K SP 120/208 UPS
- Double-conversion (Online)
- 8 kVA 7200 W
- Waveform: Sine
- Sealed Lead Acid (VRLA)
- Rackmount/Tower Black
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 8 kVA
- Output power
- 7200 W
- Waveform
- Sine
- Input operation voltage (min)
- 120 V
- Input operation voltage (max)
- 208 V
- Input frequency
- 40 - 70 Hz
- Output operation voltage (min)
- 102 V
- Output operation voltage (max)
- 208 V
- Output frequency
- 50/60 Hz
- Output voltage regulation
- 1%
- Efficiency
- 93%
- Input power factor
- 0.99
- Noise level
- 55 dB

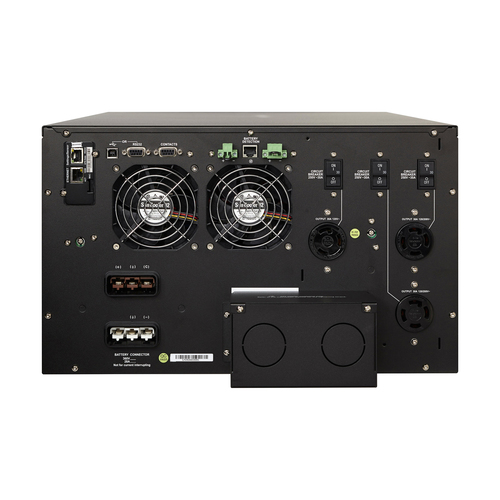

Ports & interfaces
- Power plug
- NEMA L6-30R
- RS-232 ports
- 1
- Ethernet LAN (RJ-45) ports
- 1
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Typical backup time at full load
- 7 min
- Hot-swap battery
- Yes
Design
- Form factor
- Rackmount/Tower
- Rack capacity
- 6U
- Cooling type
- Active
- Built-in fan
- Yes
- Product colour
- Black
- Control type
- Buttons

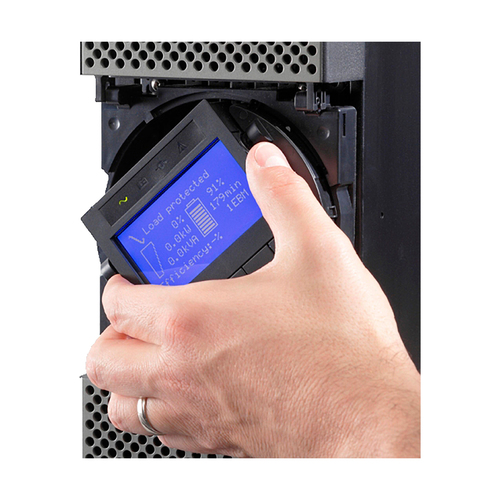

- Display type
- LCD
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
Certificates
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
- Certification
- NOM ANSI/IEEE Std C62.41 cULus Listed ENERGY STAR certified
Packaging content
- Cables included
- RS-232, USB cable
Sustainability
- Sustainability certificates
- ENERGY STAR
Weight & dimensions
- Width
- 493.4 mm
- Depth
- 812.8 mm
- Height
- 261.6 mm
- Weight
- 10.2 kg
