EatonUninterruptible Power Supplies (UPSs)

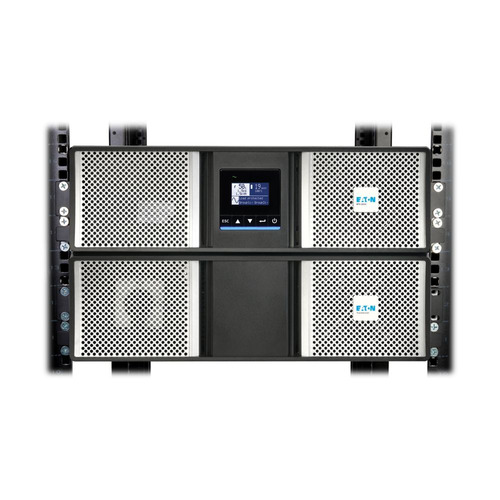

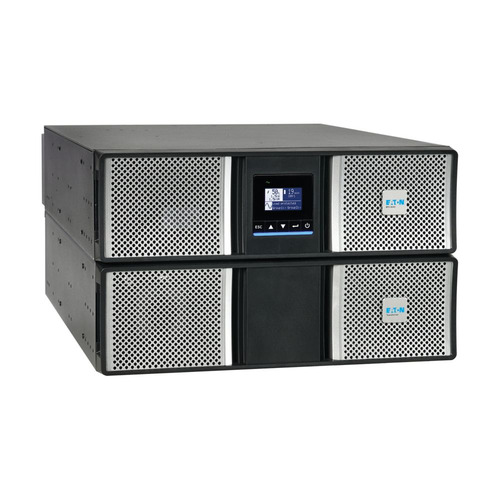

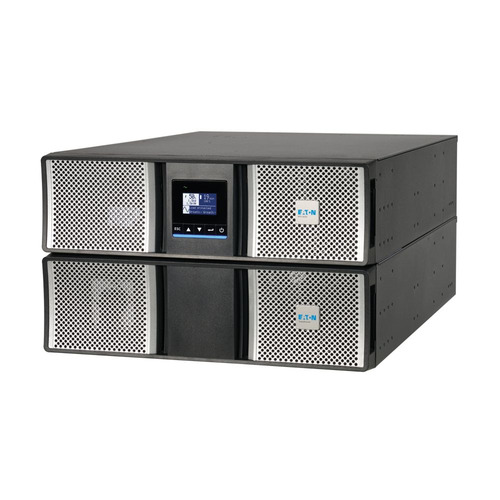

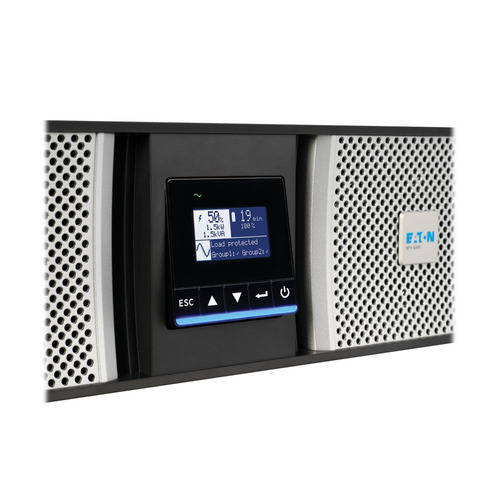

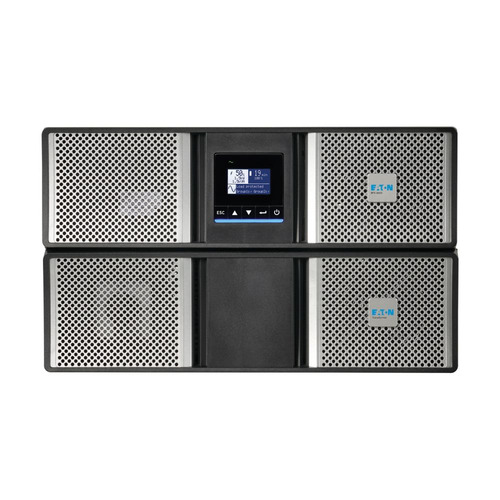

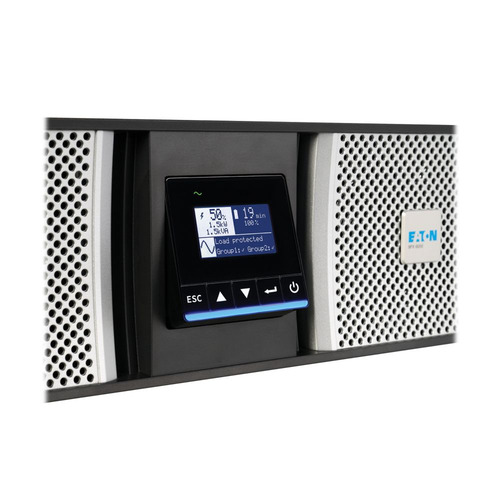

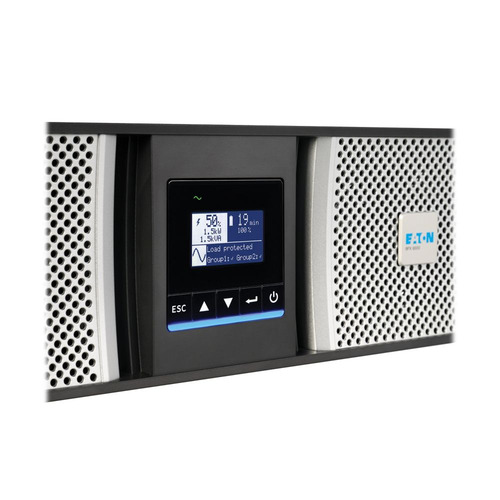

9PX G2 3000VA 3000W 208/120V Online Double-Conversion UPS - L6-30P or Hardwired Input, 18x 5-20R
- Keeps equipment running during outages to allow time for file saves and safe shutdown
- Best-in-class efficiency results in reduced energy costs and greenhouse gas emissions
- Included NETWORK-M3 Gigabit network card enables full remote access and control
- Exclusive ABM+ technology and analytics help you pinpoint when to replace batteries
- Optional extended battery modules allow extra runtime to keep equipment powered
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Eaton 9PX G2 3000VA 3000W 208/120V Online Double-Conversion UPS - L6-30P or Hardwired Input, 18x 5-20R, 2x L6-20R, 1x L6-30R, Cybersecure Network Card, Extended Run, 6U Rack/Tower
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 3 kVA
- Output power
- 3000 W
- Waveform
- Sine
- Input operation voltage (min)
- 200 V
- Input operation voltage (max)
- 240 V
- Input frequency
- 40 - 70 Hz
- Output operation voltage (min)
- 120 V
- Output operation voltage (max)
- 240 V
- Output frequency
- 50/60 Hz
- Efficiency
- 96%
- Input power factor
- 0.99
- Noise level
- 43 dB
- Power protection features
- Surge protection
Ports & interfaces
- AC outlet types
- NEMA 5-20R, NEMA L6-20R, NEMA L6-30R, Hardwire
- Power plug
- NEMA L6-30P
- AC outlets quantity
- 21 AC outlet(s)
- USB port
- Yes
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 5 Ah
- Battery voltage
- 180 V
- Typical backup time at full load
- 7.5 min
Design
- Form factor
- Rackmount/Tower
- Rack capacity
- 6U
- Cable length
- 3 m
- Product colour
- Black
- Display type
- LED
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
Technical details
- Network management
- Yes
Certificates
- Compliance certificates
- cULus, Federal Communications Commission (FCC), Norma Oficial Mexicana (NOM)
Weight & dimensions
- Width
- 439.4 mm
- Depth
- 685.8 mm
- Height
- 259.1 mm
- Weight
- 92.1 kg
