EatonUninterruptible Power Supplies (UPSs)

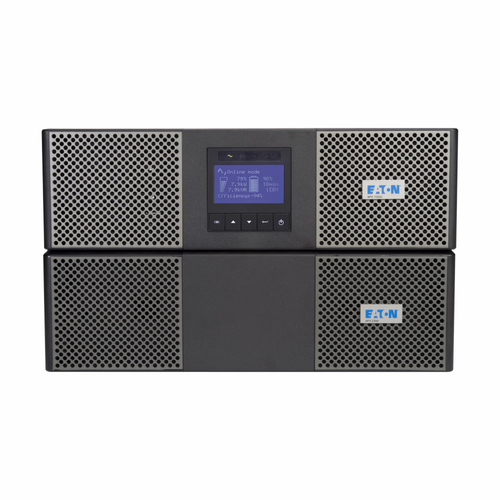

9PX 10K SP 120/208 UPS
- Double-conversion (Online)
- 10 kVA 9000 W
- Rackmount/Tower Black, Silver
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 10 kVA
- Output power
- 9000 W
- Input operation voltage (min)
- 120 V
- Input operation voltage (max)
- 208 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 176 V
- Output operation voltage (max)
- 276 V
- Output voltage regulation
- 1%
- Response time
- 0 ms
- Efficiency
- 93%
- Input current Total Harmonic Distortion (THD)
- 2%
- Noise level
- 55 dB
Ports & interfaces
- AC outlet types
- NEMA L14-30R, NEMA L6-30R
- USB port
- Yes
- RS-232 ports
- 1
Design
- Form factor
- Rackmount/Tower
- Rack capacity
- 6U
- Product colour
- Black, Silver
- Display type
- LCD
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- 0 - 35 °C
Certificates
- Compliance certificates
- RoHS
Weight & dimensions
- Width
- 260 mm
- Depth
- 813 mm
- Height
- 432 mm
Downloads
