EatonUninterruptible Power Supplies (UPSs)

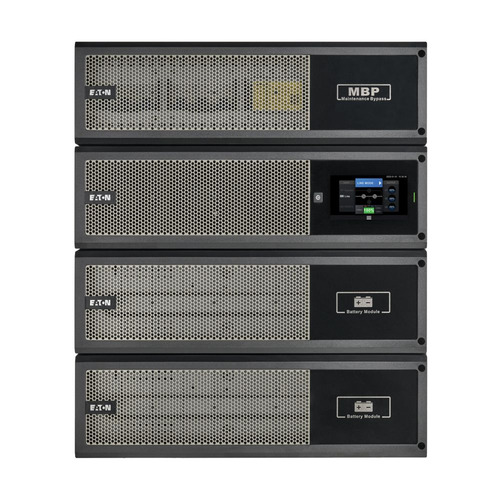

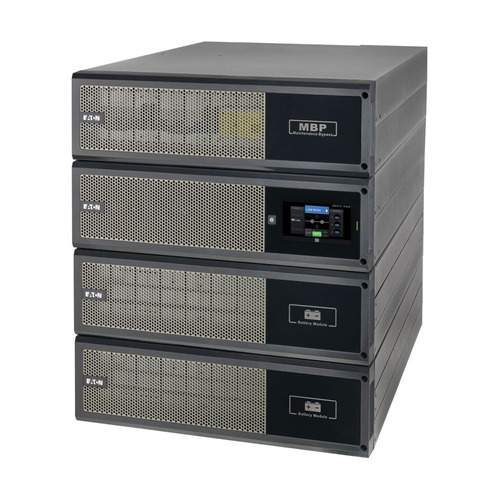

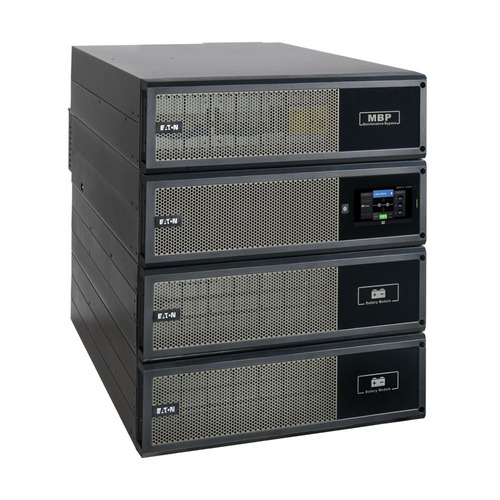

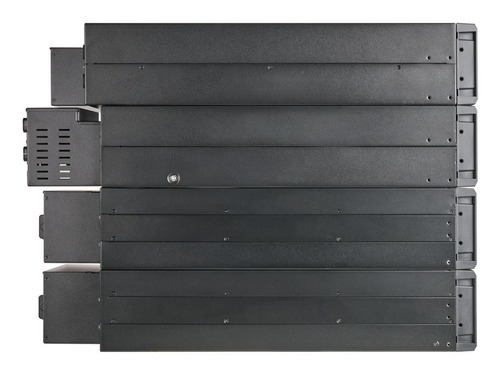

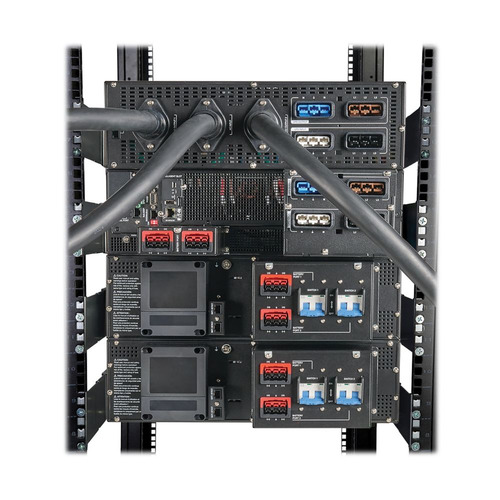

93PX20KIHWNDG uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W
- Innovative quick-connect design for easy plug-and-play deployment and service
- Up to 98.6% energy efficiency in ECO mode to save energy and operating costs
- Unity power factor (1.0) and high power density to save data center white space
- Cybersecure industrial network card enables full remote access and control 24/7
- Maintenance bypass keeps equipment operational during UPS service or replacement
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

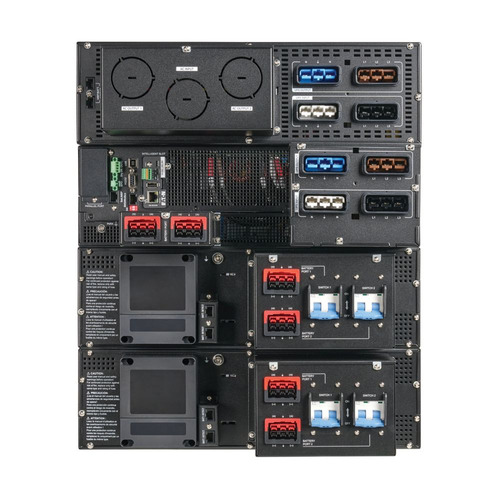

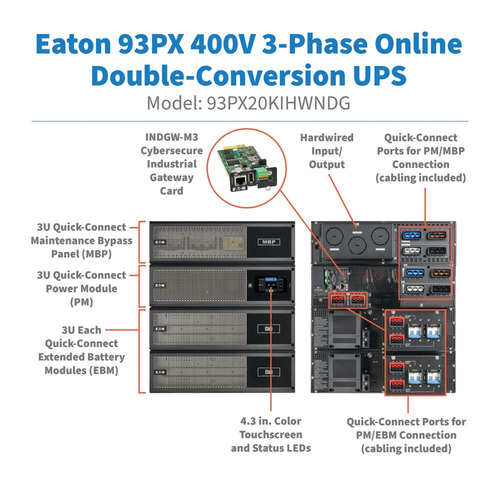

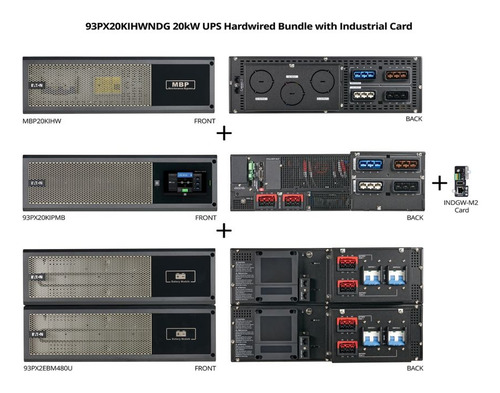

93PX 20000VA 20000W 400V 3-Phase Online Double-Conversion UPS - Hardwired Input/Output, Maintenance Bypass, Cybersecure Industrial Gateway Card, Extended Run, 12U
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 20 kVA
- Output power
- 20000 W
- Waveform
- Pure sine
- Input operation voltage (min)
- 230 V
- Input operation voltage (max)
- 400 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 230 V
- Output operation voltage (max)
- 400 V
- Maximum current
- 30.3 A
- Response time
- 10 ms
- Number of input phases
- 3
- Number of output phases
- 3
- Input power factor
- 0.9
- Output power factor
- 1
- Crest factor
- 3:1
Ports & interfaces
- AC outlet types
- Hardwire
- Power plug
- Hardwire
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery life (max)
- 6 year(s)
Design

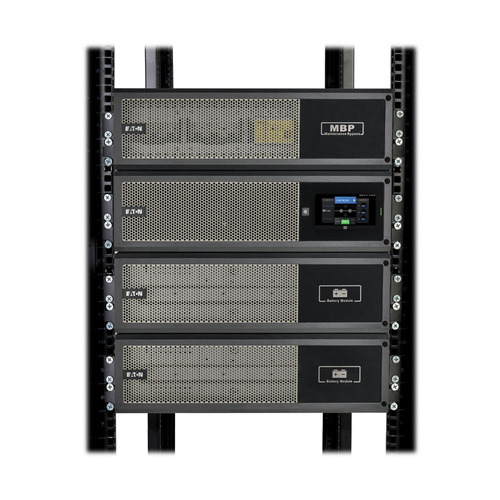

- Form factor
- Rackmount
- Rack capacity
- 12U
- Product colour
- Black
- Display type
- LCD
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 40 °C
- Operating relative humidity (H-H)
- 0 - 95%
Certificates
- Compliance certificates
- UL
Weight & dimensions
- Width
- 437.9 mm
- Depth
- 713.7 mm
- Height
- 903.2 mm
- Weight
- 324.3 kg
Downloads
