DellLaptop Docks & Port Replicators

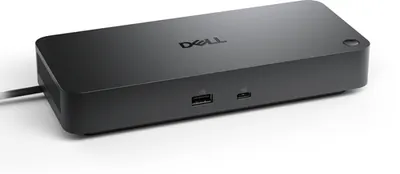

WD25TB4 Wired Thunderbolt 4 Black
- Wired
- Host interface: Thunderbolt 4
- USB Power Delivery (USB PD)
- Ethernet LAN 2500 Mbit/s Wake-on-LAN ready
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Drive unmatched power to your workspace with the latest Thunderbolt 4 dock, featuring up to 130W power delivery.
Specifications
Ports & interfaces
- Connectivity technology
- Wired
- Host interface
- Thunderbolt 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 2
- USB Power Delivery (USB PD)
- Yes
- USB Power Delivery up to
- 130 W
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- DisplayPorts quantity
- 2
- DisplayPort version
- 1.4
- Thunderbolt 4 ports quantity
- 2
- Microphone in
- No
Network
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Ethernet LAN data rates
- 2500 Mbit/s
- Wake-on-LAN ready
- Yes
Performance
- Card reader integrated
- No
- Data transfer rate
- 1.25 Gbit/s
- Maximum digital resolution
- 5120 x 2160 pixels
- Number of displays supported
- 4
- Maximum refresh rate
- 60 Hz
- Cable lock slot type
- Kensington
- Product colour
- Black
- On/off switch
- Yes
- LED indicators
- Yes
Power
- Power source type
- DC
- Power supply
- 180 W
- Power cable length
- 0.83 m
Software
- Windows operating systems supported
- Windows 10, Windows 11
- Mac operating systems supported
- Yes
- Linux operating systems supported
- Ubuntu 24.04 LTS, Red Hat Enterprise Linux 9.6
- Other operating systems supported
- ChromeOS
Weight & dimensions
- Width
- 90 mm
- Depth
- 35.3 mm
- Height
- 205 mm
- Weight
- 567 g
Packaging data
- Quantity per pack
- 1 pc(s)
Packaging content
- Cables included
- AC
- AC adapter included
- Yes
- Quick start guide
- Yes
Carbon footprint
- Total carbon footprint (kg of CO2e)
- 93
- Carbon emissions, manufacturing (kg of CO2e)
- 29.48
- Carbon emissions, logistics (kg of CO2e)
- 2.05
- Carbon emissions, energy usage (kg of CO2e)
- 60.45
- Carbon emissions, end-of-life (kg of CO2e)
- 1.12
- PAIA version
- GaBi version 1, 2025
