D-LinkNetwork Switch Components

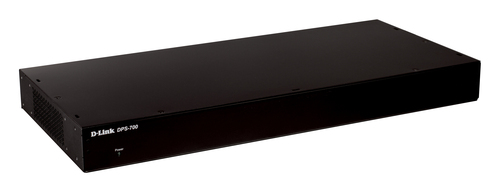

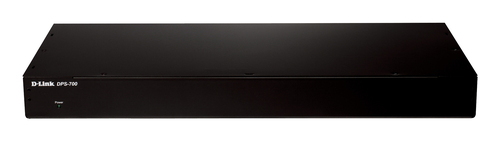

589W Redundant Power Supply
- Redundant Power Supply keeps your switch online in case of Power Supply Failure
- 1+1 PoE Budget, allowing you to extend your PoE budget by 370 Watts on supported switches
- Rack Mountable for ease of installation
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The combination of D-Link’s fully managed switch line and DPS Series of Redundant Power Supplies enables today’s business networks with unmatched flexibility, performance, scalability, and availability. When paired with a supported D-Link switch, the DPS-700 provides uninterrupted fail-over in the unlikely event of a mechanical power supply failure. Additionally, the DPS-700 supports a 1+1 power budget allowing you to double the PoE budget on supported switches.
Specifications
Features
- Product type
- Power supply
- Product colour
- Black
- LED indicators
- Yes
- Mean time between failures (MTBF)
- 624961 h
- Compatibility
- DGS-1510-52XMP DGS-1520-28MP DGS-1520-52MP DGS-3120-48PC DGS-3120-24PC DGS-3130-30PS/SI DGS-3130-54PS/SI DGS-3420-28PC DGS-3420-52PC DGS-3620-28PC DGS-3620-52PC DGS-3630-28PC DGS-3630-52PC
Power
- Total power
- 589 W
- AC input voltage
- 90 - 264 V
- AC input frequency
- 50 - 60 Hz
- Maximum current
- 7.5 A
Certificates
- Safety
- UL 60950 3rd Edition, CSA 22.2 NO.234, EN 60 950
- Certification
- UL CUL FCC Class B CE
Operational conditions
- Operating temperature (T-T)
- 0 - 65 °C
- Storage temperature (T-T)
- -40 - 85 °C
- Operating relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 195 mm
- Depth
- 196 mm
- Height
- 50 mm
- Weight
- 3.7 kg
Packaging data
- Package width
- 344 mm
- Package depth
- 559 mm
- Package height
- 132 mm
- Package weight
- 5.6 kg
Logistics data
- Harmonized System (HS) code
- 85177900
- Shipping (inner) case length
- 57.7 cm
- Shipping (inner) case width
- 42.4 cm
- Shipping (inner) case height
- 37.6 cm
- Shipping (inner) case net weight
- 16.8 kg
- Products per shipping (inner) case
- 3 pc(s)
- Pallet gross weight (air)
- 238.4 kg
- Master (outer) cases per pallet (air)
- 12 pc(s)
- Products per pallet (air)
- 36 pc(s)
- Pallet gross length
- 120 cm
- Pallet gross width
- 100 cm
- Pallet height (air)
- 126.3 cm
- Pallet gross weight (sea)
- 384 kg
- Master (outer) cases per pallet (sea)
- 20 pc(s)
- Products per pallet (sea)
- 60 pc(s)
- Pallet height (sea)
- 2.02 m
- Shipping (inner) case gross weight
- 18.2 kg
Downloads
More in Accessories
StarTech.com130W AC redundant power module ensures continuous operation for the MCMCM-CHASSIS-PSU
TP-Link900W AC Power Supply ModuleSPEC: Up to 900 watts output power, Steel CPSM900-AC
TP-LinkOmada 1 Meter 25G SFP28 Direct Attach CableSPEC: Up to 1 m Distance, SSM6220-1M
TP-LinkPole/Wall Mount Kit for Outdoor Access PointDimensions: 330.5 172.5 49APM-200

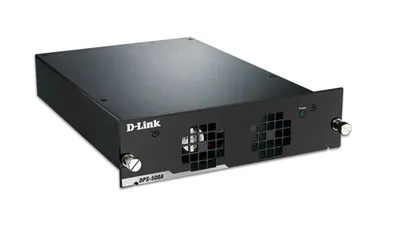

D-LinkRedundant Power Supply Unit, 140 Watt RPSUDPS-500A
