Home/Catalogue/CyberPower/RCCARD100
Drag to turn · 3 views
CyberPowerNetwork Cards
RCCARD100 network card Internal Ethernet 100 Mbit/s
- UPS Management through Cloud
- Plug-and-play Installation
- RoHS Compliant
- QR Code for Quick Setup
- User-upgradeable Firmware
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
CyberPower RCCARD100 is an optional management add-on to specific CyberPower UPS series. By inserting the card into the expansion slot on the UPS, users can add the UPS to the PowerPanel® Cloud system, thus enabling remote monitoring and management of the UPS, through a secure web portal or mobile app.
The card is plug-and-play design and features hot-swappable capability, allowing quick and easy installation without interrupting the operation of the UPS. In addition, the card supports user-upgradeable firmware, so users are able to keep the functionality up-to-date with ease.
Specifications
Ports & interfaces
- Connectivity technology
- Wired
- Interface
- Ethernet
- Ethernet LAN (RJ-45) ports
- 1
Network
- Maximum data transfer rate
- 100 Mbit/s
- Networking standards
- IEEE 802.3, IEEE 802.3u
- Ethernet LAN
- Yes
- Ethernet interface type
- Fast Ethernet
- Ethernet LAN data rates
- 10,100 Mbit/s
- Cabling technology
- 10/100BaseT(X)
Design
- Component for
- PC
- Product colour
- Black, Green, Metallic
- Internal
- Yes
- Plug and Play
- Yes
- LED indicators
- TX / RX, Link
- Country of origin
- China
- Certification
- CE, FCC Class B, RoHS
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -10 - 50 °C
- Operating relative humidity (H-H)
- 0 - 90%
- Storage relative humidity (H-H)
- 0 - 95%
Sustainability
- Sustainability compliance
- Yes
Weight & dimensions
- Width
- 54 mm
- Depth
- 76.5 mm
- Height
- 36.1 mm
- Weight
- 31 g
Packaging data
- Package width
- 170 mm
- Package depth
- 60 mm
- Package height
- 165 mm
- Package weight
- 300 g
Technical details
- Compliance certificates
- RoHS
Logistics data
- Harmonized System (HS) code
- 8473302000
Downloads
More in Accessories

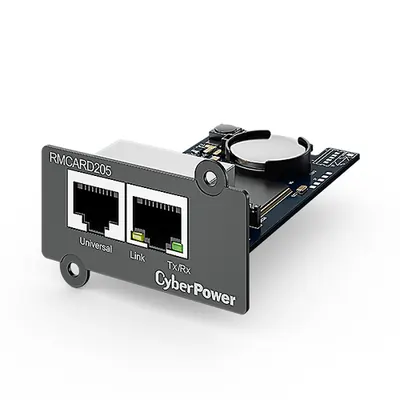

CyberPowerMgmt Card Http Snmp NMS Enviro RJ45 3YR WTYRMCARD205
