CyberPowerPower Distribution Units (PDUs)

3Phase Switched MBO PDU, 200240V/30A, 0U, 24 C13 + 6 C19, NEMA L2130P

Part # PDU83104UPC 649532622191Warranty: 3 Years0.01 lb

Monitoring Level: Metered-by-Outlet
Phase: 3-Phase
Notifications: Email, SMS Text, and SNMP Trap
Amps: 30A (Derated to 24A)
Volts: 200-240V
Frequency: 50/60Hz

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

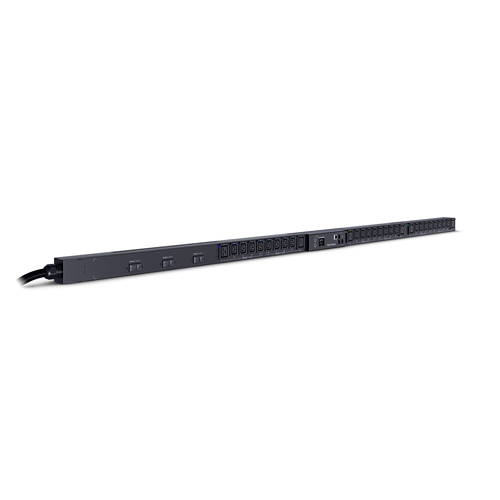

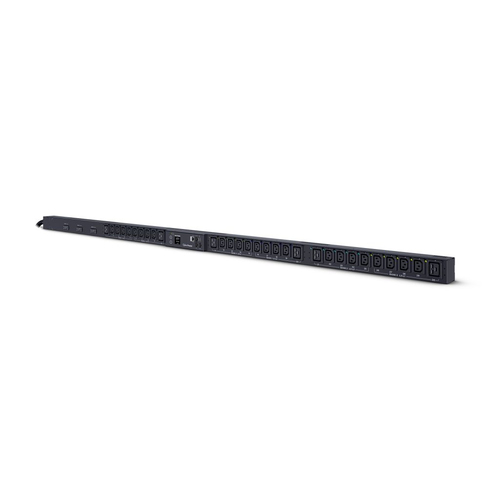

Streamline capacity planning and power management with the CyberPower PDU83104 switched metered-by-outlet 3-Phase PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling, and more.

The PDU83104 supports inputs between 200-240V and includes 30 IEC-320 outlets. Other features include ultra-low power consumption, multi-color outlet LEDs, an interactive digital display with selectable background color, high operating temperature range, built-in web interface, and power event notifications. The CyberPower PDU83104 is protected by a three-year limited warranty.

Power Distribution

Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

Ultra-low Power Consumption

Consumes less than 5W, resulting in less heat generation and lower energy costs.

Multi-color Outlet LEDs

Allows for easy identification of power phases, especially in a dimly lit rack environment. The individual outlet LED will turn red when there is an alert.

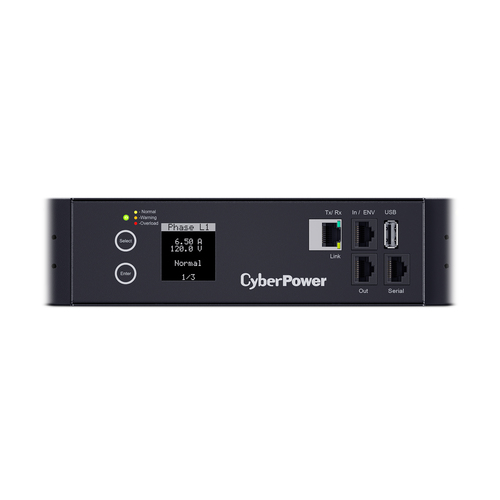

Digital Display

Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.

Multi-color LCD Background

User selectable background color on digital display allows for easy classification of PDU based on application. The LCD turns red when there is an alert.

High Operating Temperature Range

Operates in data center hot aisle up to 140˚F (60˚C).

Switchable Outlets

Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.

Per Outlet Power Metering

Provides information on the amount of power being drawn from each outlet, each circuit, and the PDU as a whole.

CyberPower Management Console

A hardware interface built into Monitored and Switched PDUs. Its functionality includes the ability to switch PDU outlets on and off, reboot connected equipment locally or remotely, schedule power cycling of attached equipment, and perform other tasks, such as load monitoring and event logging.

Remote and Local Monitoring

Enables offsite and onsite tracking of PDU vitals; provides outlet control for individual and networked clients.

Automatic Event Notifications

Provide immediate updates about power events via email, SMS text, or SNMP traps.

Switch-Free Design

Safeguards against accidental power shut down.

Upgradeable Firmware

Downloadable improvements (firmware updates) to programs that run the PDU.

Long Input Power Cord

Reaches distant power sources, allowing the PDU to be placed where it’s needed.

Specifications

Design

PDU types: Switched
Type: Three-phase
Rack capacity: 0U
Product colour: Black
Display: LCD
On/off switch: Yes

Ports & interfaces

AC outlets quantity: 30 AC outlet(s)
Power plug: IEC 320
Ethernet LAN (RJ-45) ports: 2
USB ports quantity: 1

Features

Cable length: 3 m

Management features

Monitoring: Current, Voltage
Supported network protocols: IPv4, IPv6, HTTP, TLS, DNS, TCP/IP, DHCP, FTP, SNMPv1, NTP, Telnet, SMTP, SNMPv3, HTTPs, SSH, SSL, LDAP(S), RADIUS
Management protocols: UDP, Syslog, CLI, Windows AD
Firmware upgradeable: Yes
Firmware upgradeable via: USB

Power

Nominal input voltage: 200 - 240 V
AC input frequency: 50 - 60 Hz
Maximum current: 30 A
Power protection features: Overload

Operational conditions

Operating temperature (T-T): -5 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3500 m
Operating temperature (T-T): 23 - 140 °F

Weight & dimensions

Width: 56 mm
Depth: 56 mm
Height: 1791 mm
Weight: 7.71 kg

Packaging content

Cables included: LAN (RJ-45)
Manual: Yes
Rack mount kit: Yes
Packaging content: PDU, 2 Mounting Brackets, 6 M4x5 Bracket Mounting Screws, Cord Retention Tray, 50 Cable Ties, 6 M3x6 Cord Retention Tray Mounting Screws, 6 M5x12 Rack Mounting Screws/Washers, RJ45/DB9 Serial Port Connection Cable, User Manual, Registration Card
