Home/Catalogue/CyberPower/CPS-1215RMS
CPS Rackmount PDU/Surge 15A
- 1800 J 12 AC outlet(s) NEMA 5–15R 120 V
- Clamping voltage: 330 V Cable length: 4.50 m
- EMI/RFI noise filtering
- Black Rack mounting
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

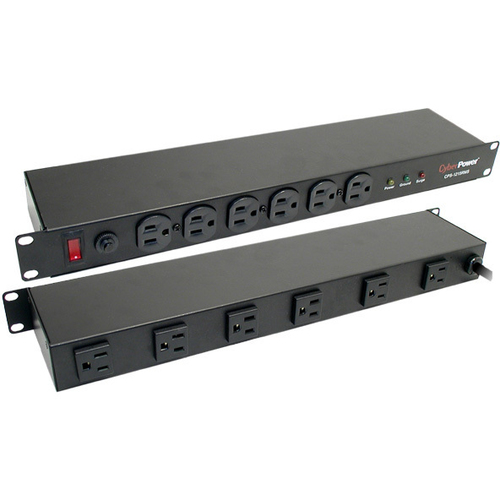

The RackBar Surge 12-outlet (6 Front and 6 Rear) rack mount surge suppressor provides 120V 15A output with built-in surge suppression. It distributes power to 12 NEMA 5-15R receptacles from a single NEMA 5-15P input. Designed for datacenters and other electrically demanding applications, this unit has a durable metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically and includes a cord retention tray. The unit complies with fully-rated cable specifications reducing electromagnetic/radio frequency interference (EMI/RFI) and is ETL/RoHS certified. It is covered by a 3-year warranty that ensures this unit is free of defects in design, assembly, material or workmanship.
Specifications
Power
- Surge energy rating
- 1800 J
- AC outlets quantity
- 12 AC outlet(s)
- AC outlet types
- NEMA 5–15R
- Nominal input voltage
- 120 V
- Clamping voltage
- 330 V
Ports & interfaces
- Power plug
- NEMA 5–15P
Features
- Product colour
- Black
- Remote control included
- No
- Rack mounting
- Yes
- EMI/RFI noise filtering
- Yes
- On/off switch
- Yes
Technical details
- Weight (imperial)
- 2.27 kg (5 lbs)
- Compliance certificates
- RoHS
Weight & dimensions
- Weight
- 2.27 kg
- Cable length
- 4.50 m
- Width
- 438 mm
- Depth
- 120 mm
- Height
- 44 mm
Operational conditions
- Operating temperature (T-T)
- 20 - 46 °C
- Storage temperature (T-T)
- 15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Certification
- UL Recognized
Indication
- LED indicators
- Yes
Other features
- Input connections
- NEMA 5-15P
- Depth (imperial)
- 12.1 cm (4.75")
- Height (imperial)
- 4.45 cm (1.75")
- Width (imperial)
- 43.8 cm (17.2")
