Switched PDU 30A SNMP L630P 240V Input 21 IECC13 3 IECC19 Outlets 10ft 3Yr Wty

Part # PDU41105UPC 649532935130Warranty: 3 years20.9 lb

Single-phase Monitored, Switched 0U Black
LCD
24 AC outlet(s) C13 coupler, C19 coupler

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Product Overview

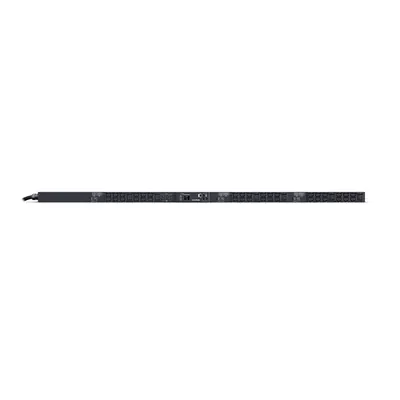

The CyberPower PDU41105 is a 0U rackmount switched power distribution unit or PDU that has 24 outlets and provides 240V 30A output. This PDU distributes power to 21 IEC-320 C13 outlets and 3 IEC-320 C19 outlet receptacles from a single NEMA L6-30P plug with unfiltered electrical pass-through. Using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, the user can manage the switched outlet receptacles individually or collectively over the network. In addition, the user can manage the switched outlet receptacles locally by using the LCD controls. Outlets can be turned on, turned off, or cycled on demand. The user can also schedule outlets to address a number of needs: remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads.

Power Distribution

Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

Switch-Free Design

Safeguards against accidental power shutdown.

Switchable Outlets

Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.

CyberPower Management Console

CyberPower Management Console is a hardware interface built into switched PDUs. Users can remotely switch individual PDU.

Remote and Local Monitoring

The user is able to track PDU vitals both offsite and onsite. It also provides control to turn on/off individual outlets or circuits.

Automatic Event Notifications

Provide immediate updates about power events via email, SMS text, or SNMP traps.

Upgradeable Firmware

Downloadable firmware updates that provide improvements to programs that run the PDU.

Power Control Display

Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.

Network-Grade Plugs and Outlets

Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

Twist-Lock Plug

The user can secure the plug into an outlet by twisting and locking into place to prevent accidental disconnection.

Long Input Power Cord

Allows the user to place the PDU where it’s needed because the power cord reaches distant power sources.

Cord Retention Tray

Secures power cords. Keeps cord organized and accessible by securing power cord. The cord-retention tray also helps cords stay plugged in.

Configurable Mounting Brackets

Allows for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).

Specifications

Design

PDU types: Monitored, Switched
Type: Single-phase
Rack capacity: 0U
Housing material: Steel
Product colour: Black
Display: LCD

Ports & interfaces

AC outlets quantity: 24 AC outlet(s)
Power plug: NEMA L6-30P
AC outlet types: C13 coupler, C19 coupler
Ethernet LAN (RJ-45) ports: 1

Features

LED indicators: Yes
Cable length: 3.3 m

Management features

Supported network protocols: IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, Windows AD
Firmware upgradeable: Yes
Firmware upgradeable via: USB
