Monitored PDU 30A 120V 16 520R Outlets NEMA L530P 12ft Cord SNMP 1U 3YR WTY

Part # PDU31003UPC 649532614189Warranty: 3 years13.05 lb

Single-phase Managed, Monitored 2U Black
LCD
16 AC outlet(s) NEMA 5–20R

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Product Overview

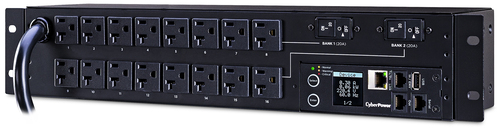

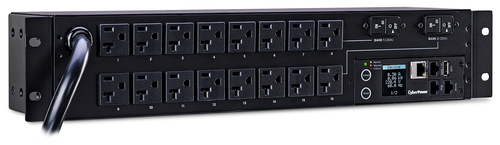

The CyberPower PDU31003, a 16-outlet (front), 2U rackmount monitored power distribution unit (PDU), provides 120V 30A output. PDU31003 distributes power to 16 NEMA 5-20R receptacles from a single twist lock NEMA L5-30P plug with unfiltered electrical pass-through. Monitor power status over the network by using the CyberPower management console and the RJ45 Ethernet port for network connection. Monitor power status locally by using the LCD. The PDU31003 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions.

Power Distribution

Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

Switch-Free Design

Safeguards against accidental power shut down.

CyberPower Management Console

A hardware interface built into monitored and switched PDUs. It can perform tasks such as load monitoring and event logging.

Remote and Local Monitoring

Enables offsite and onsite tracking of PDU vitals; provides outlet control for individual and networked clients.

Automatic Event Notifications

Provides immediate updates about power events via email, SMS text, or SNMP traps.

Upgradeable Firmware

Downloadable firmware updates to improve programs that run the PDU.

Digital Display

Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.

Network-Grade Plugs and Outlets

Highly durable construction ensures the efficient distribution of power to servers, equipment, and connected devices in demanding IT or industrial environments.

Long Input Power Cord

The PDU is able to be placed where it’s needed because it reaches distant power sources.

Cord Retention Tray

Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.

Mounting Brackets

Design allows PDU to be installed in a rack or horizontally or vertically, under a counter or via wall mount.

Durable Metal Housing

Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.

Three-Year Limited Warranty

Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.

Specifications

Design

PDU types: Managed, Monitored
Type: Single-phase
Rack capacity: 2U
Mounting: Horizontal/Vertical
Housing material: Steel
Product colour: Black
Display: LCD

Ports & interfaces

AC outlets quantity: 16 AC outlet(s)
Power plug: NEMA L5-30P
AC outlet types: NEMA 5–20R
Ethernet LAN (RJ-45) ports: 1
USB ports quantity: 1

Features

LED indicators: Yes
Cable length: 3.7 m

Management features

Supported network protocols: IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, Windows AD
Firmware upgradeable: Yes
Firmware upgradeable via: USB
