CyberPowerPower Distribution Units (PDUs)

Switched PDU, 20A Derated to 16A, 200240V, 50/60 HZ, 21 X IEC320 C13 Outlets + 3 X IEC320 C19

Part # PDU41104UPC 649532935147Warranty: 3 Years0.01 lb

Switched PDU: SNMP Network Interface and Switchable Outlets
Automated notifications: Email, SMS Text, and SNMP Trap
Phase: Single

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

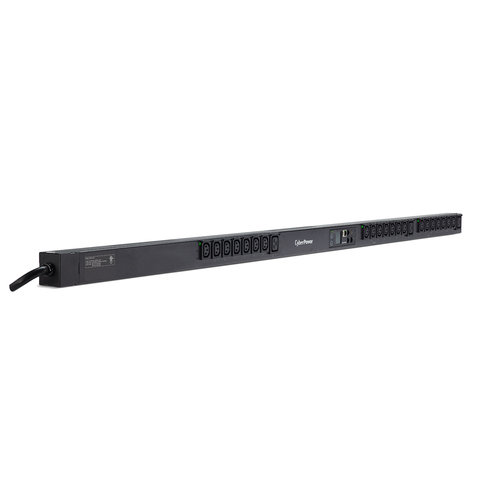

The CyberPower PDU41104, a 0U rackmount switched power distribution unit (PDU), provides 200-240V 20A output via 21 IEC-320 C13 + 3 IEC-320 C19 receptacles from a single NEMA L6-20P input power plug. The switched outlet receptacles can be managed over the network by using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally from the Power Control display. The PDU41104 offers outlets that can be turned on, turned off, or recycled on demand. Outlets can be programmed to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads.

With a three-year limited warranty, you can trust CyberPower’s commitment to high quality.

Power Distribution

Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

Switch-Free Design

Safeguards against accidental power shutdown.

Switchable Outlets

Provides local and remote control for individual and multiple outlets. Local control can turn on/turn off outlets and disable unused outlets. Remote control can restart outlets, restart devices, turn on/turn off outlets, schedule power on/off sequencing, and disable unused outlets.

CyberPower Management Console

Built into Switched PDUs, a CyberPower Management Console is a hardware interface. Users can remotely switch individual PDU outlets or circuits on and off, immediately or on a schedule, to power cycle connected equipment. . The CyberPower Management Console monitors the incoming power and power draw from the PDU, sends notifications based on the power status, and logs events.

Remote and Local Monitoring

The user can track PDU vitals both offsite and onsite, and remote and local monitoring provides control to turn on/off individual outlets or circuits.

Automatic Event Notifications

Provides the user with immediate updates about power events via email, SMS text, or SNMP traps.

Upgradeable Firmware

Downloadable improvements (firmware updates) to programs that run the PDU.

Power Control Display

Provides up-to-date status information about the PDU, the power situation and allows for the local set-up and configuration.

Network-Grade Plugs and Outlets

Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

Long Input Power Cord

Reaches distant power sources, allowing the PDU to be placed where it’s needed.

Cord Retention Tray

Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.

Configurable Mounting Brackets

Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).

Durable Metal Housing

Protects internal components and resists damage from impact or abrasions within challenging industrial environments. The durable metal housing also extends the life of the product.

Three-Year Limited Warranty

Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.

Specifications

Design

PDU types: Switched
Type: Single-phase
Rack capacity: 0U
Mounting: Vertical
Housing material: Steel
Display: LCD

Ports & interfaces

AC outlets quantity: 24 AC outlet(s)
Power plug: IEC 320
AC outlet types: NEMA 6–20P
Ethernet LAN (RJ-45) ports: 2
USB ports quantity: 1

Features

LED indicators: Link, Status
Cable length: 3 m

Management features

Monitoring: Current, Voltage
Management platform: IPv4, IPv6, HTTP, TLS, DNS, TCP/IP, DHCP, FTP, SNMPv1, NTP, Telnet, SMTP, SNMPv3, HTTPs, SSH, SSL, LDAP(S), RADIUS
Supported network protocols: UDP, Syslog, CLI, Windows AD
Firmware upgradeable: Yes
Firmware upgradeable via: USB

Power

Nominal input voltage: 200 - 240 V
AC input frequency: 50 - 60 Hz
Maximum current: 20 A

Certificates

Compliance certificates: RoHS

Operational conditions

Operating temperature (T-T): 0 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): 32 - 140 °F

Weight & dimensions

Width: 55.9 mm
Depth: 48.3 mm
Height: 1663.7 mm
Weight: 7.8 kg

Packaging content

Cables included: LAN (RJ-45)
Manual: Yes
Rack mount kit: Yes
Packaging content: PDU, 2 Mounting Brackets, 6 (Flat Head M4x5) Bracket Mounting Screws, 6 (M5x12) Rack Mounting Screws/Washers, Cord Retention Tray, 36 Cable Ties, 6 (M3x6) Cord Retention Tray Mounting Screws, RJ45/DB9 Serial Port Connection Cable, 10ft Power Cord IEC-320 C19 to NEMA L6-20P, Registration and Software Download Cards
