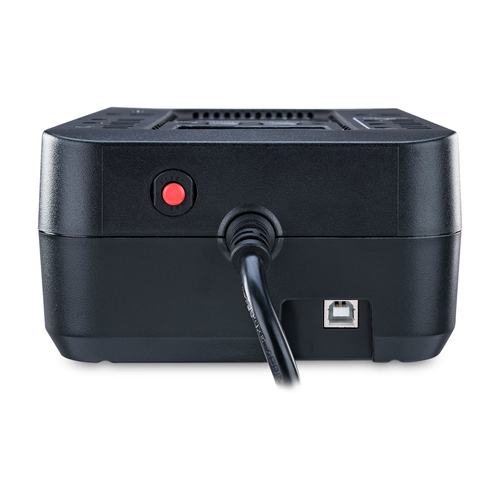

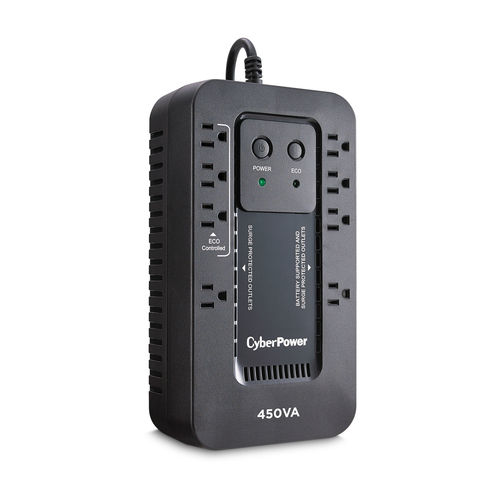

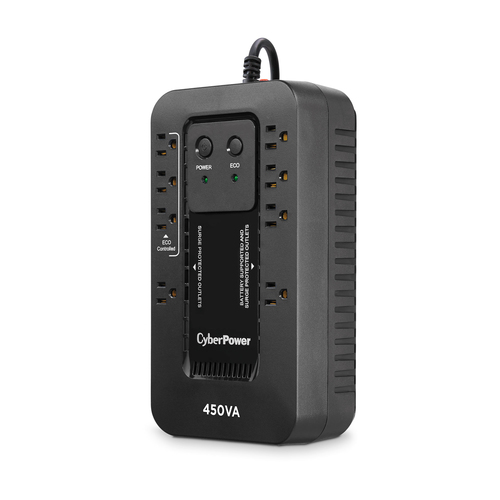

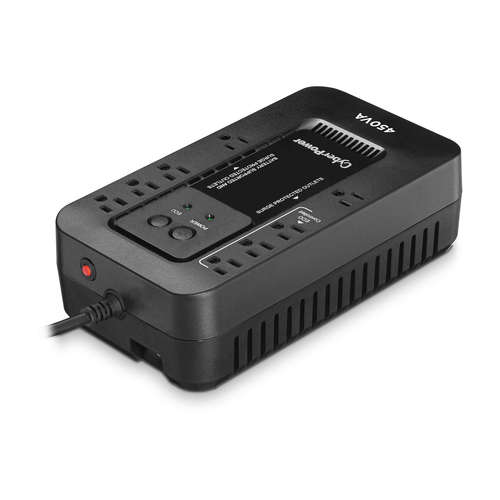

CyberPower EC450G Drag to turn · 5 views
CyberPowerUninterruptible Power Supplies (UPSs)

8 NEMA 5-15R outlets, USB, 3 Yr Wty

Part # EC450GUPC 649532621842Warranty: 3 year5.3 lb

  • Capacity: 450 VA / 260 W
  • Topology: Standby
  • Waveform: Simulated Sine Wave
  • Output: 120 VAC ± 5%
  • Plug type & cord: NEMA 5-15P, 5 ft. cord
  • Outlet types: 8 × NEMA 5-15R
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

A compact UPS with standby topology, the CyberPower Ecologic EC450G provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the EC450G offers reliable power protection and battery backup. When the battery backup detects that the computer is off or in sleep mode, computer peripherals connected to the ECO Mode, surge protected outlets will be automatically turned off, reducing power usage and lowering energy costs (USB connection required). The EC450G comes with a three-year warranty (including coverage of batteries) and a $100,000 Connected Equipment Guarantee.

01

Battery Backup

Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.

02

Surge Protection

Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.

03

Standby Topology

Ensures that when incoming power drops below or surges above safe voltage levels, the UPS switches to DC battery power and then inverts to AC power to run connected equipment.

04

Simulated Sine Wave Output

Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.

05

GreenPower UPS™ High-Efficiency

Reduces power consumption by utilizing a compact charger and power inverter to create an ultra-efficient backup power system for home and office use.

06

ECO Mode

Is an energy-efficient, user selectable feature for some surge-protected outlets. When the computer is off or is in sleep mode, the UPS automatically cuts power to computer peripherals connected to any outlets in ECO mode.

07

LED Status Lights

Indicate Power On, ECO on/off.

08

PowerPanel® Personal Software

Includes a free software download that provides a user-friendly dashboard interface for controlling and monitoring the UPS.

09

ENERGY STAR

This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.

Specifications

Features

UPS topology
Standby (Offline)
Output power capacity
0.45 kVA
Output power
260 W
Waveform
Sine
Input operation voltage (min)
96 V
Input operation voltage (max)
140 V
Input frequency
47/63 Hz
Output operation voltage (min)
120 V
Output operation voltage (max)
120 V
Output frequency
50/60 Hz
Output voltage regulation
5%
Maximum current
10 A
Surge energy rating
426 J
EMI/RFI noise filtering
Yes
Audible alarm(s)
Yes
Audible alarm modes
Low battery alarm, Overload alarm

Ports & interfaces

Power plug
NEMA 5-15P
AC outlets quantity
8 AC outlet(s)
USB port
Yes

Battery

Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
2.9 Ah
Battery voltage
12 V
Number of battery cells
1
Typical backup time at full load
2 min
Typical backup time at half load
6 min
Battery recharge time
8 h

Design

Form factor
Compact
Product colour
Black
LED indicators
Yes

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%

Certificates

Compliance certificates
RoHS

Safety regulation & standards

Safety
UL1778, cUL 107.3, FCC DOC Class B

Weight & dimensions

Width
269 mm
Depth
150 mm
Height
79 mm
Weight
2.04 kg

Packaging data

Package width
111.2 mm
Package depth
336.6 mm
Package height
206.5 mm
Package weight
2.49 kg
