Replacement Battery Cartridge for CP685AVR-G, CP685AVRLCD-G, 1 battery, 12V/8AH, Sealed lead-acid

Part # CP685AVRGUPC 649532006854Warranty: 3 year12.4 lb

Capacity: 685 VA / 390 W
Topology: Line Interactive
Waveform: Simulated Sine Wave
Output: 120 VAC ± 5%
Plug type & cord: NEMA 5-15P, 6 ft. cord

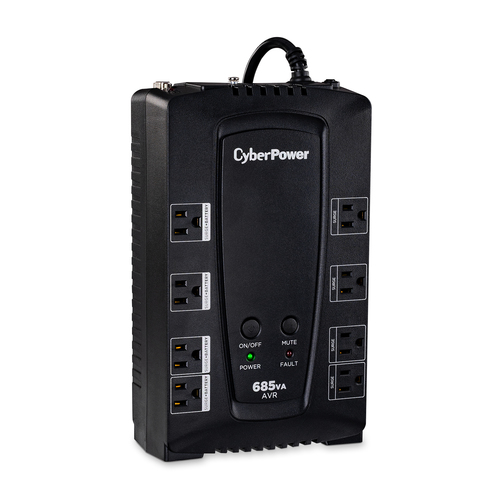

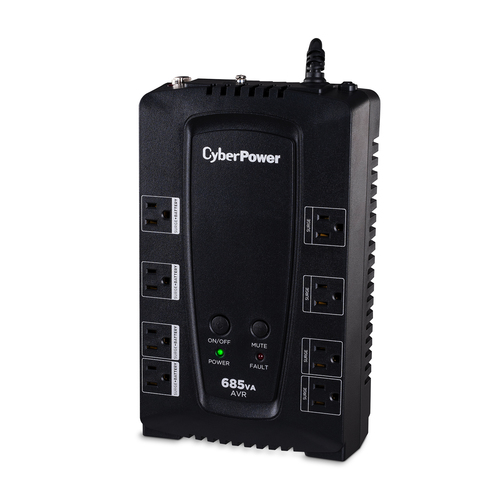

Total outlets: 8 (4 surge, 4 surge + battery backup)

In stockPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

The CyberPower CP685AVRG uninterruptible power supply (UPS) system provides battery backup and surge protection for lightning-induced surges and other power events that can damage electronic equipment. This UPS, with line-interactive topology, uses simulated sine wave output to deliver enough battery backup to power connected electronics through a utility power failure. The unit has enough runtime to perform a graceful shutdown to protect against the loss of data and damage to valuable desktop computers, workstations, networking devices, and home entertainment systems.

The CP685AVRG uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power. AVR is essential in areas where power fluctuations occur frequently, and it helps to extend the unit’s battery life. CyberPower designed the CP685AVRG to minimize noise for a quieter work environment and run efficiently to reduce power consumption.

With a $125,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to the quality of this battery backup with surge protection.

Battery Backup

Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.

Surge Protection

Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.

Line Interactive Topology

Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.

Automatic Voltage Regulation (AVR)

Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.

Simulated Sine Wave Output

Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.

GreenPower UPS Bypass

Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.

Minimizes noise during operation for a quieter work environment.

Transformer-Spaced Outlets

Widely spaced outlets accommodate transformer-based plugs without compromising the access of other outlets.

PowerPanel® Personal Software

Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available here.

ENERGY STAR

This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
