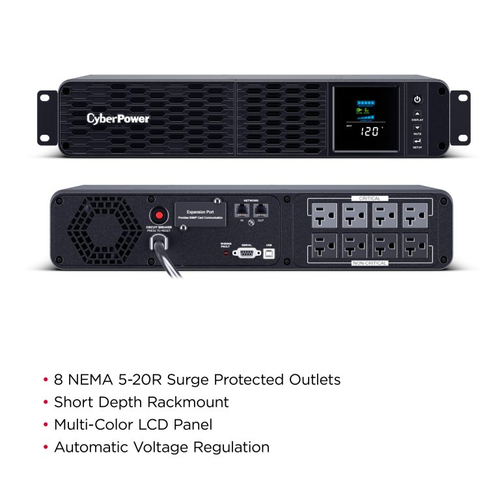

2U, 8 NEMA 520R, 515P, 6Ft Cord, 3Yr Wty
- Battery Backup
- Surge Protection
- Sine Wave Output

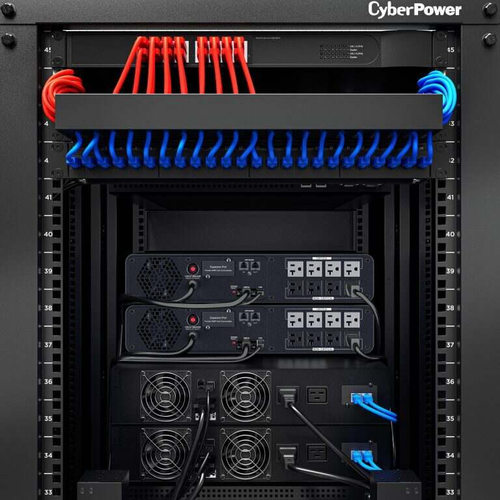

- Short Depth Rackmount
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

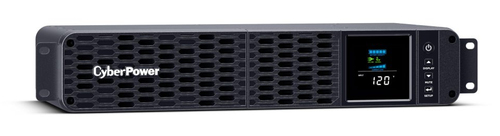

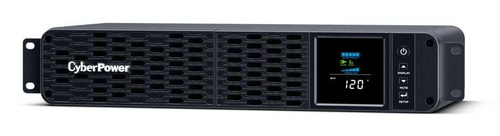

The CP2000PFCRM2U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility.

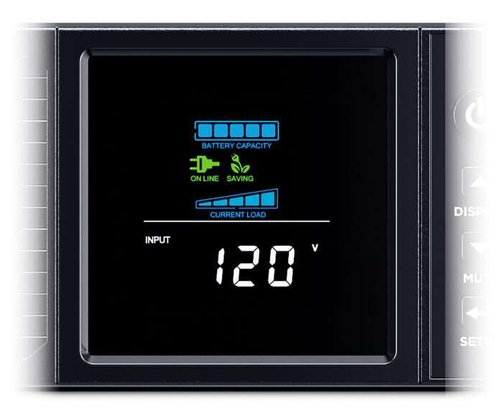

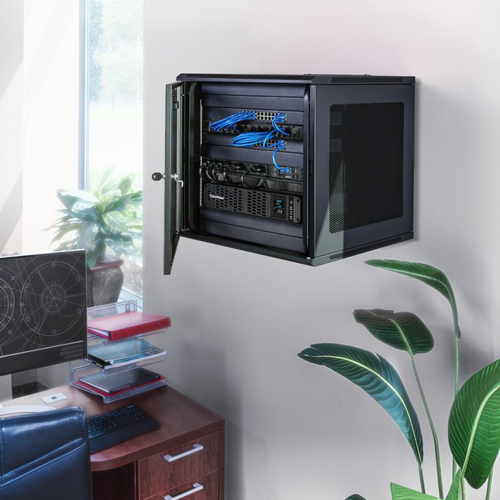

The CP2000PFCRM2U is equipped with Automatic Voltage Regulation (AVR) technology, enabling it to stabilize minor voltage fluctuations without engaging the battery, thereby extending battery life. It features an advanced multifunction control interface with a color LCD, providing real-time system status and alert notifications for at-a-glance monitoring. For enhanced system oversight, remote management and monitoring capabilities are supported via optional Remote Network Management Card or Cloud Monitoring Card integration. With a compact chassis depth of just 10.8 inches, the CP2000PFCRM2U is optimized for deployment in shallow-depth rack environments where space constraints are a critical consideration.
The CP2000PFCRM2U comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 2 kVA
- Output power
- 1200 W
- Waveform
- Sine
- Input operation voltage (min)
- 89 V
- Input operation voltage (max)
- 139 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 114 V
- Output operation voltage (max)
- 126 V
- Output frequency
- 60 Hz
- Output frequency regulation
- 1 Hz
- Output voltage regulation
- 5%
- Automatic Voltage Regulation (AVR)
- Yes
- Maximum current
- 16.7 A
- Surge energy rating
- 1500 J
- Response time
- 8 ms
- Heat dissipation
- 57.6 BTU/h
- Number of input phases
- 1
- Number of output phases
- 1
- Efficiency
- 95%
- Surge protection
- Yes

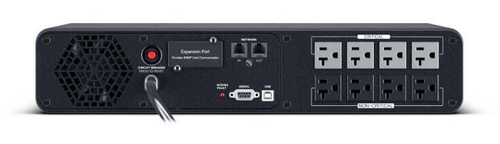

Ports & interfaces

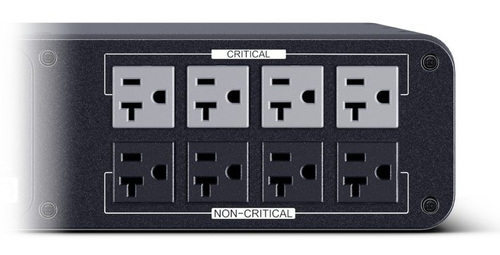

- AC outlet types
- NEMA 5-20R
- Power plug
- NEMA 5-20P
- AC outlets quantity
- 8 AC outlet(s)
- USB port
- Yes
- USB 2.0 ports quantity
- 1
- USB port type
- USB Type-B
- Serial ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 2
Battery
- Battery replacement accessibility
- End-user
- Battery capacity
- 18000 mAh
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 18 Ah
- Battery voltage
- 24 V
- Number of batteries supported
- 2
- Number of batteries included
- 2 pc(s)
- Typical backup time at full load
- 2.2 min
- Typical backup time at half load
- 9 min
- Battery life (max)
- 6 year(s)
- Battery recharge time
- 8 h
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
- Cold start
- Yes
- Replacement battery cartridge
- RB1290X2G
Design
- Form factor
- Rackmount
- Housing material
- Plastic
- Rack capacity
- 2U
- Product colour
- Black
- Control type
- Buttons
- Display type
- LCD
- LED indicators
- Fault
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3048 m
- Non-operating altitude
- 0 - 15239 m
Certificates
- Compliance certificates
- UL, cUL, RoHS

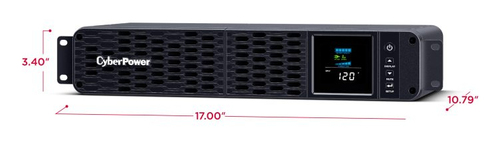

Weight & dimensions
- Width
- 433 mm
- Depth
- 274 mm
- Height
- 86 mm
- Weight
- 13 kg
