2000VA 1200W, 1U, RM, Sinewave

Part # CP2000PFCRM1UUPC 64953293917657.1 lb

Battery Backup
Surge Protection
Sine Wave Output
Automatic Voltage Regulation (AVR)
Line Interactive Topology

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Product Overview

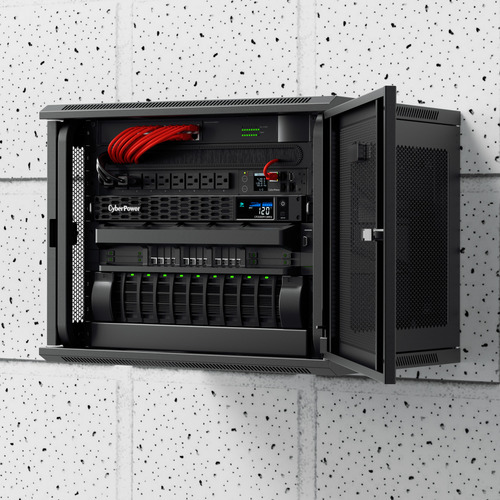

The CP2000PFCRM1U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility.

Battery Backup

Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.

Surge Protection

Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.

Sine Wave Output

Generates energy that is identical to, or cleaner than the utility company's power grid. Benefits include low total harmonic distortion, minimal electrical noise, and optimal line clarity.

EMI/RFI Noise Filter

Maintains clean power for connected equipment by filtering out electromagnetic and radio frequency interference to improve picture and sound quality.

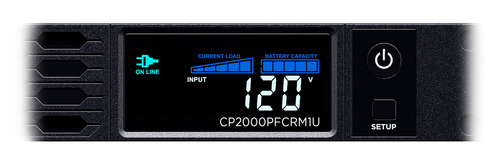

Multifunction LCD Panel with Color Display

Displays immediate, detailed information on the UPS battery and power conditions. The color display quickly alerts users to potential problems before they can affect critical equipment and cause downtime.

Automatic Voltage Regulation (AVR)

Conserves battery life by increasing the AC power and maintaining a safe voltage level without switching to battery mode.

Data Line Protection

Prevents power surges that travel through Ethernet lines from causing damage to electronics.

Line Interactive Topology

Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.

ENERGY STAR

This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.

GreenPower UPS™ Bypass Design

A patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.

Ultra Quiet Design

Minimizes noise during operation for a quieter work environment.

PowerPanel® Business Software

Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available here.

Specifications

Features

UPS topology: Line-Interactive
Output power capacity: 2 kVA
Output power: 1200 W
Waveform: Sine
Input operation voltage (min): 88 V
Input operation voltage (max): 144 V
Input frequency: 57/63 Hz
Output frequency: 60 Hz
Output voltage regulation: ±5%
Automatic Voltage Regulation (AVR): Yes
Surge energy rating: 1050 J
Response time: 8 ms
Output power factor: 0.6
Surge protection: Yes
Power protection features: Surge protection, Overload
Audible alarm(s): Yes
Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm, Fault

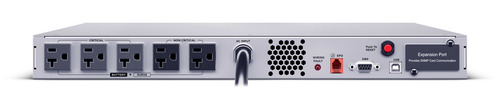

Ports & interfaces

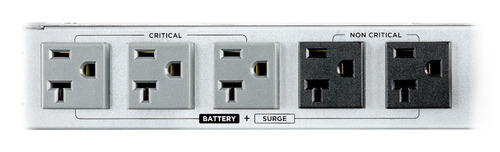

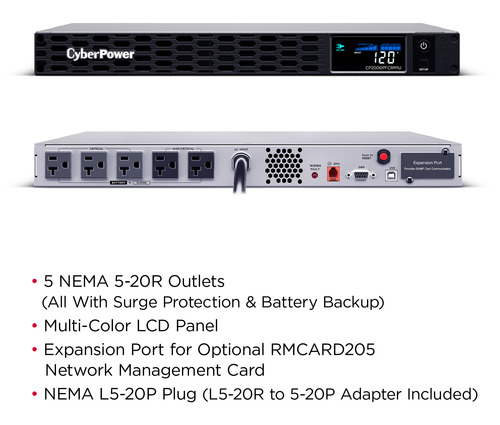

AC outlet types: NEMA 5-20R

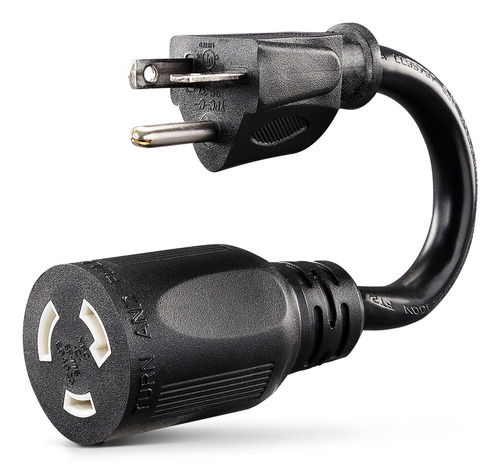

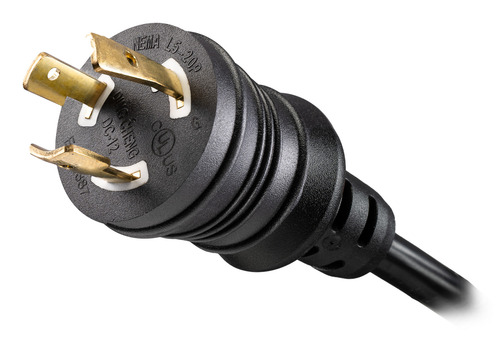

Power plug: NEMA L5-20P
AC outlets quantity: 5 AC outlet(s)

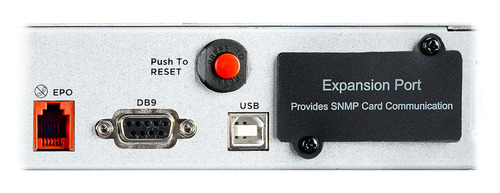

USB port: Yes
Serial interface: Yes

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 9 Ah
Battery voltage: 6 V
Number of batteries supported: 6
Typical backup time at full load: 3.1 min
Typical backup time at half load: 12.6 min
Battery recharge time: 8 h
Hot-swap battery: Yes

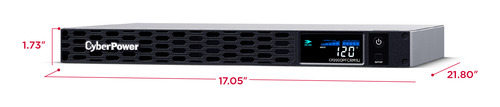

Design

Form factor: Rackmount
Rack capacity: 1U
Cable length: 2.4 m
Product colour: Black
Control type: Buttons
Display type: LCD
LED indicators: Power, Fault
Compatibility: Security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility.
