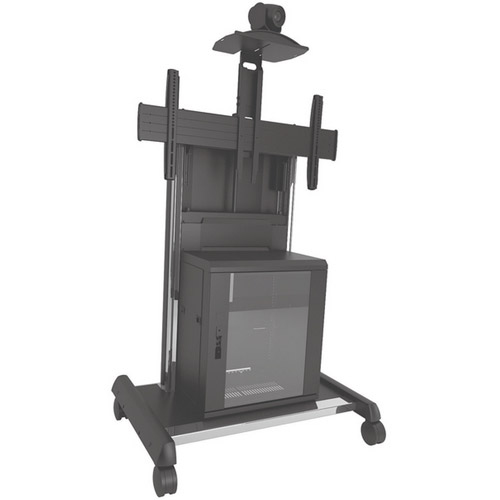

Extra-Large Fusion® Video Conferencing Cart
- Maximum weight capacity: 113.4 kg
- Minimum screen size: 139.7 cm (55") Maximum screen size: 177.8 cm (70") Wall
- Number of displays supported: 1
- Black
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
This mobile Fusion® AV Cart incorporates rounded edges and sleek features to give the cart a softer professional feel that fits well in corporate and classroom environments. The height can be adjusted by one person via a 1/2" hex bit on a power drill without removing the screen.
Features:
Sleek, two-toned look suitable for multiple environments including education, corporate and digital signage
Turn knob allows single user to easily adjust the screen height using a 1/2" hex drill bit to any height between 41.9 to 50.4" (106.4 to 128.0 cm)
Internal storage rack mountable (pre-installed rack rail) and non-rack mountable AV components
Includes hardware to vertically mount 11 RUs of AV gear (inside dimension H x W x D: 24 x 19 x 15" (60.9 x 48.2 x 38.1 cm)
Removable side, rear and front panels for easy component access and cable routing
Reversible front door with smoked glass for access to IR controlled components.
Includes hooks in back for cable bundling during transport
Includes 14" wide above component shelf (FCA501)

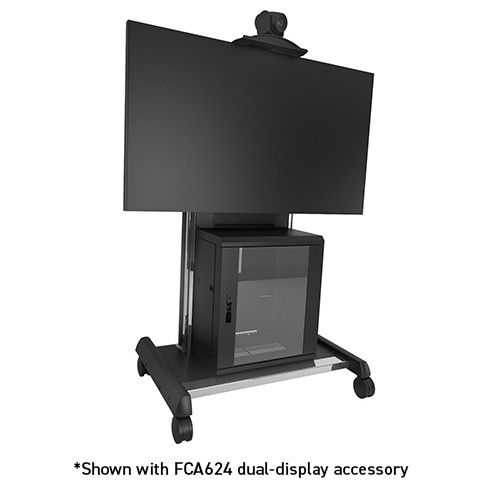

For dual display applications add the Dual-Display accessory - FCA624B
Ships fully assembled, on a pallet, with heavy-duty casters (front two casters are lockable)
Specifications
Mounting
- Maximum weight capacity
- 113.4 kg
- Minimum screen size
- 139.7 cm (55")
- Number of displays supported
- 1
- Maximum screen size
- 177.8 cm (70")
- Panel mounting interface
- 200 x 200,800 x 400 mm
- Mounting type
- Wall
Ergonomics
- Tilt angle range
- -2.5 - 2.5°
- Number of wheels
- 4 wheel(s)
Design
- Product colour
- Black
- Certification
- TAA
Technical details
- Compliance certificates
- TAA
Weight & dimensions
- Width
- 986 mm
- Depth
- 737 mm
- Height
- 1395 mm
Packaging data
- Package weight
- 88.9 kg
Logistics data
- Harmonized System (HS) code
- 94031098
