ChiefTV Mounts & Stands

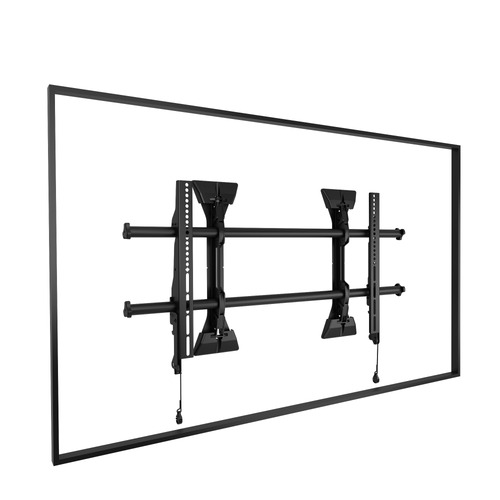

Large Fusion Micro-Adjustable Fixed Wall Display Mount
- Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
- ControlZone Leveling for post-installation fine tuning of height and leveling
- Centerless Shift provides up to 17.4" (441 mm) of post-installation lateral shift for limitless centering
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- ClickConnect offers an audible click when the screen safely engages with the mount
- Quick-Store Cords use magnets to easily store and access pull cords
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Installer-inspired Fusion fixed mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution. Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, ControlZone leveling adjustment and ClickConnect Latching. New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.
Specifications
Mounting
- Maximum weight capacity
- 90.72 kg
- Minimum screen size
- 106.7 cm (42")
- Number of displays supported
- 1
- Maximum weight capacity (per display)
- 90.7 kg
- Maximum screen size
- 2.18 m (86")
- Minimum VESA mount
- 100 x 100 mm
- Maximum VESA mount
- 800 x 500 mm
- Panel mounting interface
- 100 x 100,800 x 500 mm
- Mounting type
- Wall
Ergonomics
- Height adjustment
- Yes
- Distance to the wall (max)
- 5.1 cm
Design
- Product colour
- Black
- Certification
- UL
Technical details
- Orientation
- Landscape
Weight & dimensions
- Width
- 654 mm
- Depth
- 50.8 mm
- Depth (max)
- 5.1 cm
- Height
- 463.6 mm
Packaging data
- Package weight
- 8.82 kg
- Package type
- Box
Logistics data
- Harmonized System (HS) code
- 85299097
