Drag to turn · 4 views

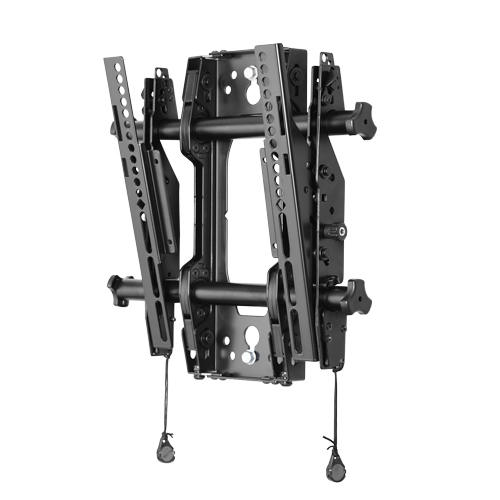

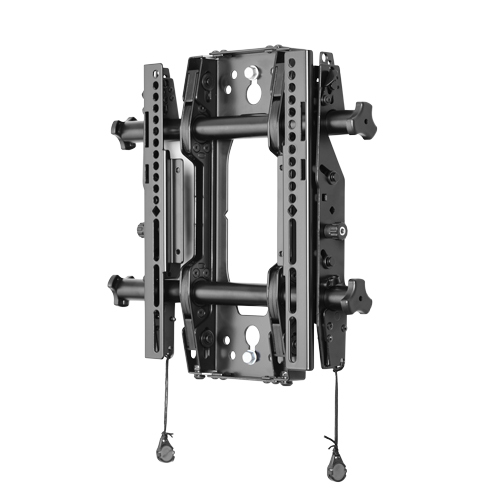

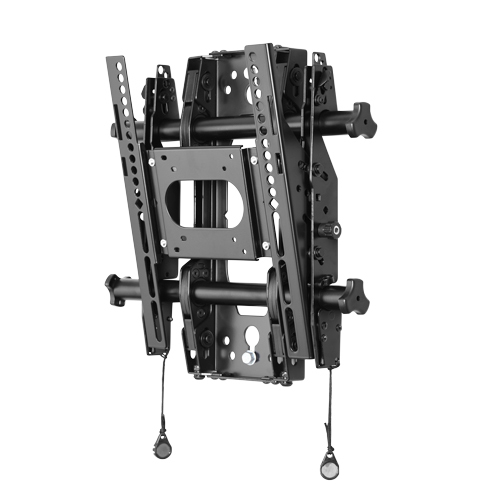

Small Tilt Wall Mount Single Stud
- Maximum weight capacity: 34.02 kg
- Minimum screen size: 61 cm (24") Maximum screen size: 106.7 cm (42") Wall
- Minimum VESA mount: 75 x 75 mm Maximum VESA mount: 300 x 300 mm
- Number of displays supported: 1
- Height adjustment
- Black
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Installer-inspired Fusion® tilt mount solves top flat panel installation problems, offering flexible adjustments for small displays with a low-profile display mounting solution.
This single stud Fusion® mount hides better behind narrow bezel displays in the 24-32" range. Many installer-friendly features of Fusion in a smaller form to create superior aesthetic results.
The mount incorporates Fusion® favorites like Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.
Diagram
See a simple setup of an interactive classroom that incorporates a Fusion® tilt wall mount into its design. See the diagram
Selection Guide
Ideal for digital signage, hospitality, transportation and corporate settings, find The Fusion® tilt wall mount that's perfect for you. See the guide
Specifications
Mounting
- Maximum weight capacity
- 34.02 kg
- Minimum screen size
- 61 cm (24")
- Number of displays supported
- 1
- Maximum screen size
- 106.7 cm (42")
- Minimum VESA mount
- 75 x 75 mm
- Maximum VESA mount
- 300 x 300 mm
- Mounting type
- Wall
Ergonomics
- Height adjustment
- Yes
- Height adjustment range
- 0 - 25 mm
- Tilt angle range
- -12 - 2°
Design
- Product colour
- Black
- Certification
- ULCERT
Weight & dimensions
- Width
- 361.9 mm
- Depth
- 50.8 mm
- Depth (min)
- 5.1 cm
- Height
- 359.2 mm
Packaging data
- Package weight
- 6.83 kg
Logistics data
- Harmonized System (HS) code
- 85299097
