ChiefSignage Display Mounts

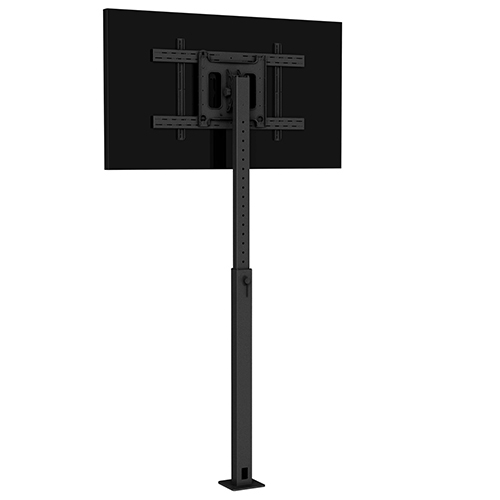

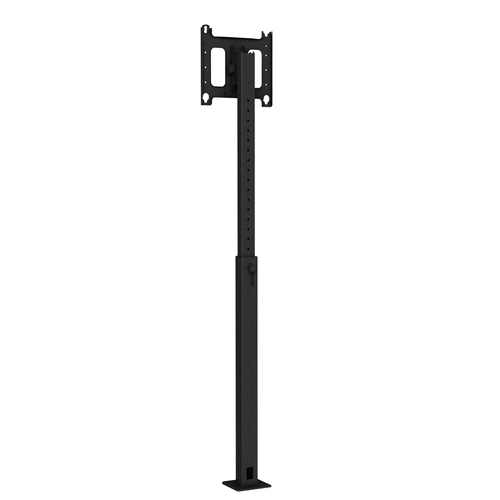

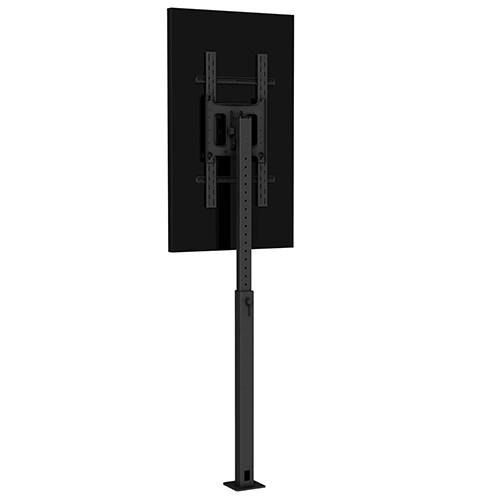

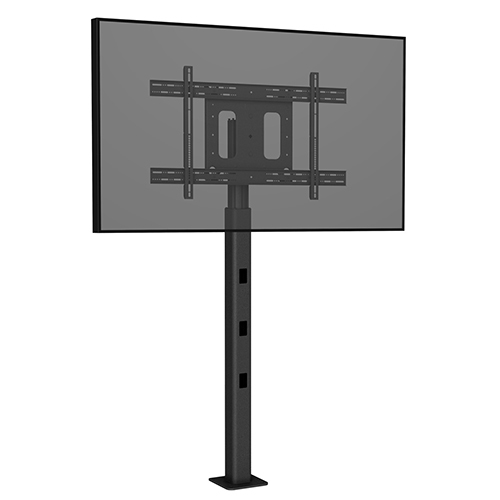

Single Flat Panel Bolt-Down Mount
- Small 8 x 8” (203 x 203 mm) footprint
- Centris Technology provides effortless, fingertip tilt of +/- 15
- Screen angle stays set in place until you decide to re-adjust
- Height adjustment without tools between 51.38 to 85.38” (1305 – 2169 mm) from the floor
- ClickConnect Technology provides an audible click to confirm that the flat panel is locked in place
- Offers quick connect/disconnect wtih no tools necessary
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
This small-profile bolt-down solution for displays is great for storefront, digital signage applications. The Q-Latch mount allows for quick changes between portrait and landscape, post installation leveling roll and tilt. The center of the display can be placed between 51.38 to 85.38” (1305 – 2169 mm) from the floor.
Specifications
Mounting
- Maximum weight capacity
- 68.04 kg
- Minimum screen size
- 106.7 cm (42")
- Number of displays supported
- 1
- Maximum screen size
- 190.5 cm (75")
- Mounting type
- Floor
- Minimum VESA mount
- 200 x 200 mm
- Maximum VESA mount
- 860 x 515 mm
Ergonomics
- Height adjustment
- Yes
- Height adjustment range
- 1305 - 2169 mm
- Tilt angle range
- -15 - 15°
Design
- Type
- Fixed floor stand
- Product colour
- Black
- Certification
- ULCERT
Weight & dimensions
- Width
- 413.3 mm
- Depth
- 222.2 mm
- Height
- 2385.4 mm
Packaging data
- Package weight
- 36.7 kg
Logistics data
- Harmonized System (HS) code
- 85299097
