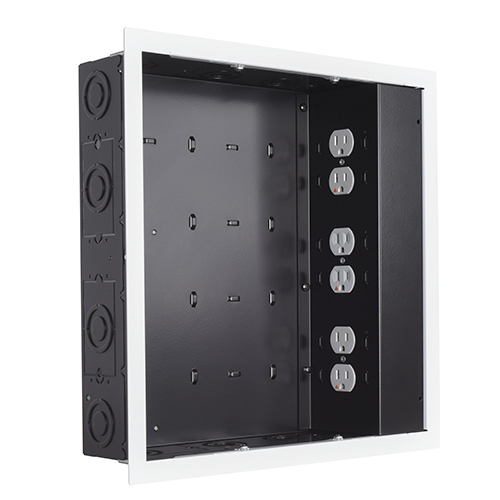

Proximity® In-wall Storage Box with 6 Receptacle Filter & Surge - PAC526FWP6

Overview

The PAC526FWP6 simplifies flat panel installation by providing an organized, recessed space for routing excess cables. The addition of the flange adds an aesthetic trimmed appearance and drywall mounting capability.

Includes a high-performance, dual gang housing, isolated ground, 6-receptacle outlet featuring non-sacrificial multi-stage filtration and surge protection. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.

Compatible with the PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, ThinstallTM, and Fusion® wall mounts.

Output: 15A, 1875 W continuous

Power Requirements:

N-G; 800V L-G Maximum Continuous Operating Voltage (MCOV): 240V Nominal Discharge Current (In): 3kA Short Circuit Current Rating (SCCR): 5kA Ambient Temperature Max: 40 degrees C

Power Consumption: >0.5 watt Type 3 Surge Protective Device (SPD) Voltage Protection Rating (VPR): 600V L-N

DiagramSee this storage box as part of an on-wall kiosk, digital signage solution.

VideoChief has added new capabilities to its line of storage solutions. Watch the 3-minute video on this storage box.
