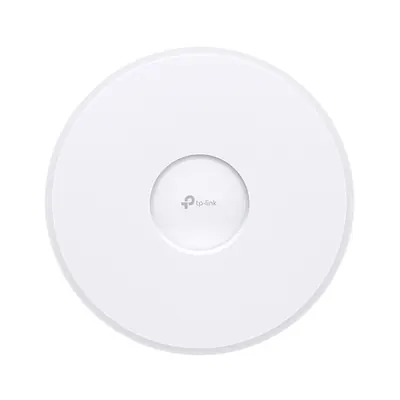

Omada BE5000 Ceiling Mount DualBand WiFi 7 Access Point

Part # EAP720UPC 8404606031711.95 lb

Dual-Band 4-Stream Wi-Fi 7: Up to 5.0 Gbps (4324 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).†
1× 2.5G Port: Ensures fast connectivity throughout the network.
Low Latency and Interference: Multi-Link Operation, Multi-Rus, and 4K -QAM ensure high performance of your network.‡
Flexible Deployment and Easy Setup: Supports both 802.3at PoE and DC Power supply for flexible installation (power adapter included). Omada SDN for one-click setup.
Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.△
More Connections and Wider Coverage: Supports 250+ concurrent clients* and covers up to 1500 ft² (140 ㎡) **for reliable and extensive wireless connectivity.

In stockPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Optimized Wired Performance with 2.5G PoE+ Port

With a 2.5 Gigabit Ethernet Port, EAP720 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3at PoE is ideal for flexible deployment.

Specifications

Features

2.4 GHz: Yes
5 GHz: Yes
6 GHz: No
Maximum data transfer rate: 4324 Mbit/s
Maximum data transfer rate (2.4 GHz): 688 Mbit/s
Maximum data transfer rate (5 GHz): 4324 Mbit/s
Ethernet LAN data rates: 2500 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3x
Coverage area: 140 m²
Channel bandwidth: 240 MHz
Spread spectrum method: OFDMA
Wi-Fi Multimedia (WMM)/(WME): Yes
VLAN support: Yes
Rate limiting: Yes
Airtime Fairness (ATF): Yes
Quality of Service (QoS) support: Yes
BeamForming: Yes
Maximum Tx power (2.4 GHz): 25 dBmW
Maximum Tx power (5 GHz): 25 dBmW

Security

Security algorithms: EAP-AKA, EAP-FAST, EAP-GTC, EAP-MD5, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, PEAP, PPSK, SNMP, SNMPv2, SNMPv3, SSH, SSID, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
MAC address filtering: Yes
Guest access: Yes
Schedule access: Yes
Remote Authentication Dial-In User Service (RADIUS): Yes
Access Control List (ACL): Yes
