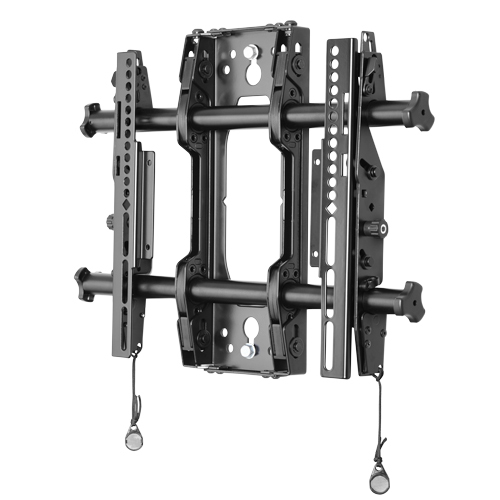

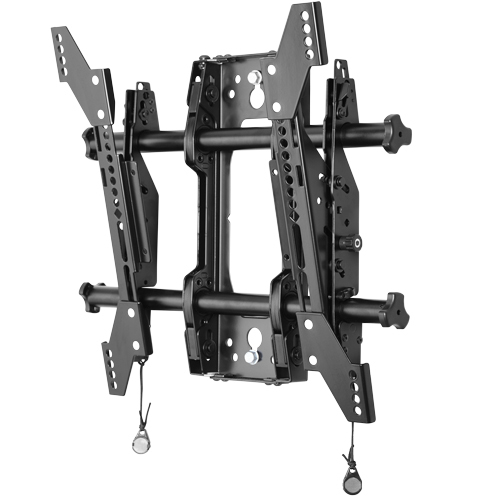

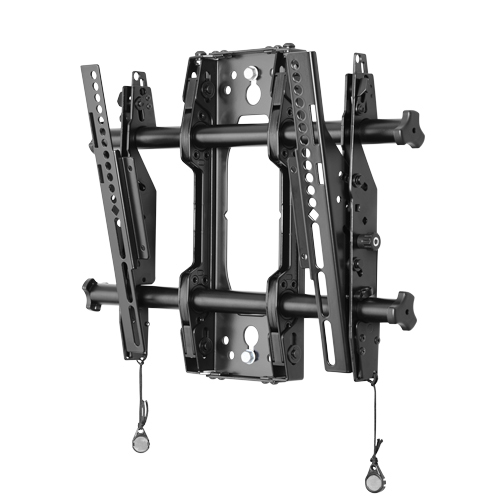

Medium Fusion® Micro-Adjustable Tilt Wall Mount, Single Stud
- Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
- Tilt can be locked at 0°, -6° or -12°
- ControlZone leveling allows post-installation fine-tuning of height and leveling
- ClickConnect offers an audible click when the display safely engages with the mount
- Post-installation lateral positioning
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Installer-inspired Fusion® tilt mount solves top flat panel installation problems, offering flexible adjustments for medium displays with a low-profile display mounting solution.
This single stud Fusion® mount hides better behind smaller narrow bezel displays in the 32-65" range. Many installer-friendly features of Fusion in a smaller form to create superior aesthetic results.
The mount incorporates Fusion® favorites like Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.
Diagram
See a simple setup of an interactive classroom that incorporates a Fusion® tilt wall mount into its design. See the diagram
Selection Guide
Ideal for digital signage, hospitality, transportation and corporate settings, find The Fusion® tilt wall mount that's perfect for you. See the guide
Specifications
Mounting
- Maximum weight capacity
- 34.02 kg
- Minimum screen size
- 81.3 cm (32")
- Number of displays supported
- 1
- Maximum screen size
- 165.1 cm (65")
- Minimum VESA mount
- 200 x 200 mm
- Maximum VESA mount
- 450 x 400 mm
- Mounting type
- Wall
Ergonomics
- Height adjustment
- Yes
- Height adjustment range
- 0 - 25 mm
- Tilt angle range
- -12 - 2°
Design
- Product colour
- Black
- Certification
- ULCERT
Weight & dimensions
- Width
- 463.6 mm
- Depth
- 50.8 mm
- Height
- 359.2 mm
Packaging data
- Package weight
- 7.45 kg
Logistics data
- Harmonized System (HS) code
- 85299097
