ChiefSignage Display Mounts

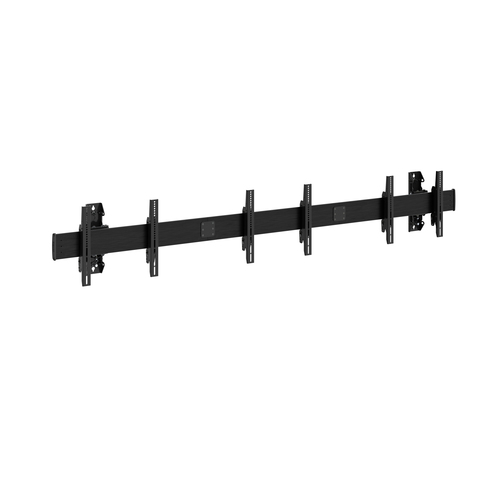

Fusion® Large Wall 3X1 Modular Menu Board Mount
- ControlZone micro-height adjustment
- Centris tilt between +0 and -20 degrees
- Tool-free screen engagement
- Portrait and landscape options for 2x1 and 3x1 configurations
- Landscape for 4x1 and 5x1 configurations
- Accommodates most 40-55" screens; check compatibility for accessory needs
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

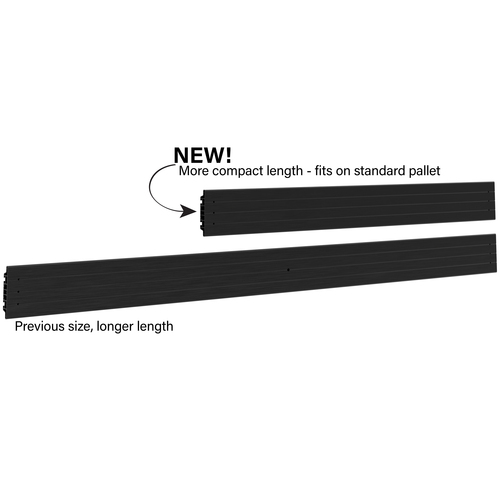

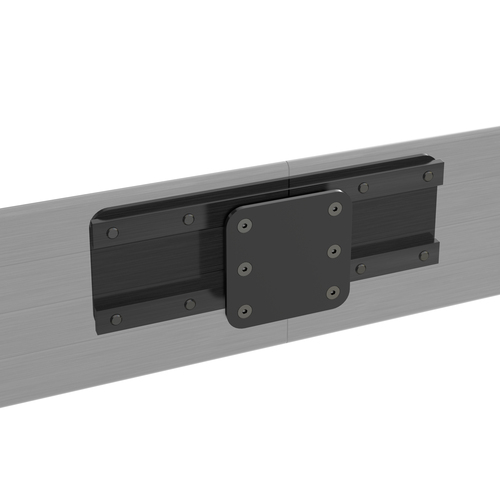

Fusion Modular Menu Board Wall Mounts offer perfect display positioning and flexible adjustments. The horizontal extrusion with depth adjustment aligns the screens quickly, even on irregular mounting surfaces, allowing easy access behind the displays for servicing. Modular extrusions with installation connectors ship in compact packaging for easy handling and stocking.
Specifications
Mounting
- Maximum weight capacity
- 56.7 kg
- Minimum screen size
- 101.6 cm (40")
- Number of displays supported
- 3
- Maximum weight capacity (per display)
- 56.7 kg
- Maximum screen size
- 139.7 cm (55")
- Mounting type
- Wall
Ergonomics
- Height adjustment
- Yes
- Tilt angle range
- -20 - 0°
- Tilt adjustment
- Yes
Design
- Product colour
- Black
- Certification
- TAA,ULCERT
Weight & dimensions
- Width
- 469.9 mm
- Depth
- 254 mm
- Height
- 1244.6 mm
Packaging data
- Package width
- 933 mm
- Package depth
- 435 mm
- Package height
- 210 mm
- Package weight
- 29.7 kg
Technical details
- Orientation
- Landscape
- Compliance certificates
- TAA
