ChiefSignage Display Mounts

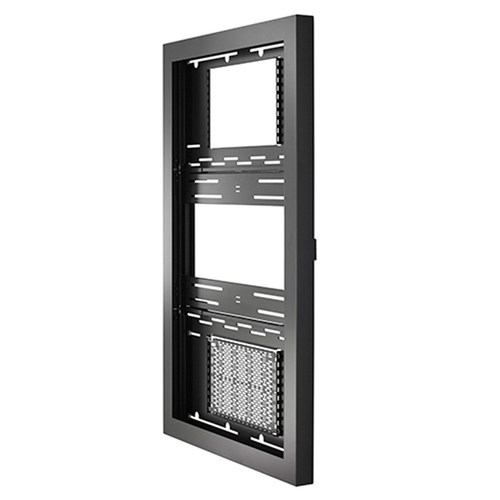

ImpactTM On-Wall Kiosk - Portrait 55 Inch Black
- Depth-adjustable exterior frame supports a wide range of displays
- A wall protrusion of 4" (101mm) or less can be obtained by using flat panels less than 2.75" (70mm) in depth
- Integrated wall reveal compensates for uneven walls to keep the frame plumb and provides passive cooling
- Exclusive design keeps the display mounted to the frame when opened for unparalleled service and maintenance access
- Reversible hinges to avoid obstructions for installation and service
- Engagement latch can be secured with tamperproof hardware
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The Impact™ On-Wall Kiosk brings new flexibility to the digital signage enclosure market while maintaining a sleek aesthetic to complement a variety of environments. A depth-adjustable exterior frame allows for a variety of displays to be used. Reversible hinges help to avoid installation and service obstructions, and the exclusive design keeps the display mounted to the frame when opened, providing unparalleled service and maintenance access.
Specifications
Mounting
- Maximum weight capacity
- 56.7 kg
- Number of displays supported
- 1
- Maximum screen size
- 139.7 cm (55")
- Mounting type
- Wall
- Minimum VESA mount
- 300 x 300 mm
- Maximum VESA mount
- 400 x 400 mm
- Panel mounting interface
- 300 x 300,400 x 400 mm
Ergonomics
- Distance to the wall (min)
- 7.6 cm
- Distance to the wall (max)
- 12.7 cm
Design
- Product colour
- Black
- Certification
- TAA,ULCERT
Weight & dimensions
- Width
- 825.5 mm
- Depth (max)
- 12.7 cm
- Height
- 1378 mm
Packaging data
- Package weight
- 50.3 kg
Technical details
- Compliance certificates
- TAA
Other features
- Compatibility
- PAC525 PAC526
Logistics data
- Harmonized System (HS) code
- 85299097
