TempoTM Flat Panel Wall Mount System, PDU Bundle
- Maximum weight capacity: 90.72 kg
- Minimum screen size: 124.5 cm (49") Maximum screen size: 2.18 m (86") Wall
- Maximum VESA mount: 970 x 450 mm
- Number of displays supported: 1
- Tilt adjustment
- Black
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
This all-in-one configurable wall mounting system is designed to improve efficiency by streamlining installation workflow. AV professionals can increase productivity and add money to the bottom line with this new system, especially for mass rollouts. Install on any wall and neatly store AV devices with simple, unparalleled service access. Install 2-6 small devices behind the display on integrated Lever Lock storage panels. Includes a slim profile Middle Atlantic 7-outlet 15A power strip with a 3-ft (0.9m) cord and a 90-degree plug for easy installation.
- One part number, one box, one order!
- Ship to site pre-loaded with small devices and cabling.
Save Money
- Reduce onsite installation personnel and time.
- Minimize last-minute shipping costs of missing parts.
Feature Flexibility
- Wall plate and extending interface design facilitates centering display in the right position.
- 10° of adjustable display tilt in 2.5° increments.
Streamlined for Success
- Total installation depth facilitates ADA compliance*
- OSHPD approved and UL & TUV certified.
- Up to 1" (25 mm) post-install leveling adjustment.
*When display depth is less than 2” (51 mm)
Integrated Storage
- Ships with two 15”x10” Lever Lock™ plates with space to add more.
- Storage plates can be moved along the mounting rail for best placement of components.

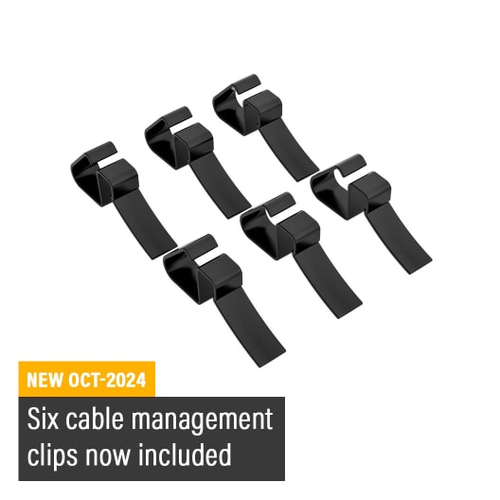

- Includes six cable management clips to keep cables tidy for a professional-looking installation.
- Lever Lock plates allow for 1 RU, 1.75" (44 mm), of storage clearance between the back of the display and the storage panel at 0-degree tilt.
Simplify Service
- 12.6" (320 mm) of service depth and 10.65" (271 mm) of service extension.
- Open wall plate for easy positioning of power and data sources and in-wall storage.

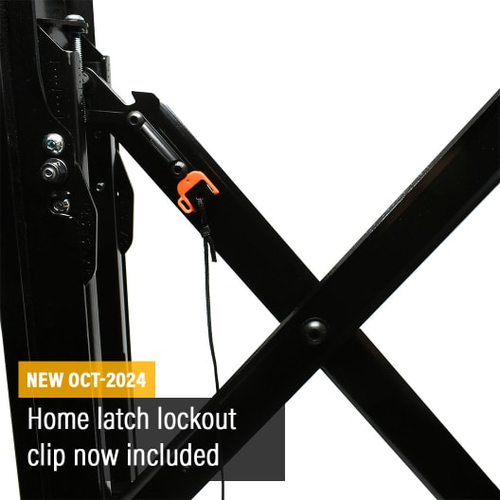

- Home latch lockout clip prevents home latch from accidentally locking until pull cords are properly stowed.
- Ships with a Middle Atlantic slim profile, 7 outlet, 15A power strip with 3ft (0.9m) cord and 90-degree plug for a better installation experience.
Specifications
Mounting
- Maximum weight capacity
- 90.72 kg
- Minimum screen size
- 124.5 cm (49")
- Number of displays supported
- 1
- Maximum weight capacity (per display)
- 90.7 kg
- Maximum screen size
- 2.18 m (86")
- Maximum VESA mount
- 970 x 450 mm
- Mounting type
- Wall
Ergonomics
- Tilt adjustment
- Yes
- Tilt angle range
- -10 - 0°
Design
- Product colour
- Black
- Certification
- cULus OSHPD TUV UL
Power
- AC input voltage
- 120 V
- Power cable length
- 0.91 m
Features
- Cable length
- 0.91 m
Weight & dimensions
- Width
- 501.6 mm
- Depth
- 49.8 mm
- Depth (min)
- 4.98 cm
- Depth (max)
- 5 cm
- Height
- 1067.6 mm
- Weight
- 14.4 kg
Packaging data
- Package width
- 1210 mm
- Package depth
- 559 mm
- Package height
- 70 mm
- Package weight
- 16.9 kg
