CanonScanners

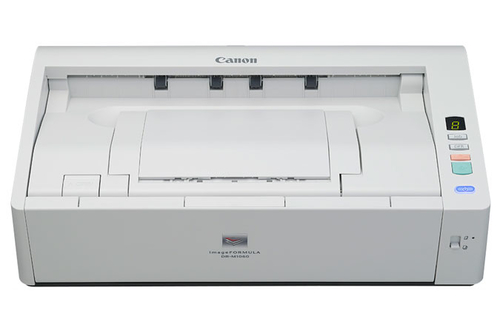

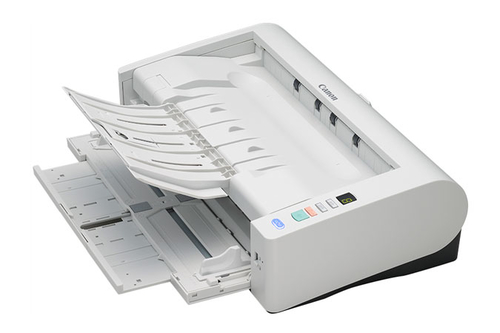

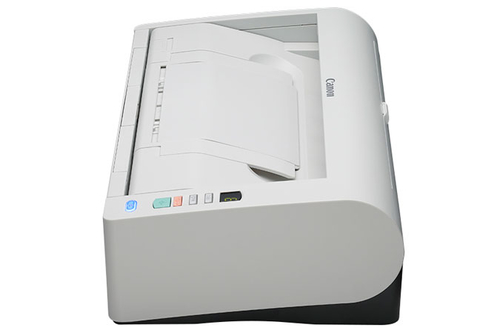

DR-M1060 Sheet-fed scanner 600 x 600 DPI A3 White

Part # 9392B002UPC 01380324753419.9 lb

Scanner type: Sheet-fed scanner 600 x 600 DPI
Colour scanning Duplex scanning
A3
Maximum scan size: 300 x 432 mm Sensor type: CMOS CIS
USB port
Power supply type: AC 32.5 W

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

The imageFORMULA DR-M1060 scanner provides productive scanning in a compact solution to assist with information management efficiency and workflow improvements. With a reliable and versatile letter head design, the DR-M1060 scanner helps eliminate the challenges of managing different types of documents. It uses a multi-feeding system in order to process documents that are thick or thin, including business cards and embossed plastic cards. The DR-M1060 scanner can be used for reducing document preparation time, converting documents into editable electronic files, enhancing scanned images, file distribution and sharing, PDF creation, and additional convenient functions. This powerful document scanner can scan 60 pages per minute, both color and black and white, and can process up to 7,500 documents per day. With these strong capabilities the DR-M1060 scanner is ideal for industries such as legal and financial services, healthcare, construction and many more.

Reliable and Versatile

- "U-turn" path feeding of Typical document scanning

- Straight path feeding

- Thick, thin, and/or long documents

- Plastic and embossed cards

- Reliable pickup feeding for ledger 11" by 17" sized documents

- Long Document Mode of Documents up to 118"

- Paper feed error detection sensors for consistent paper feeding

- ISIS & TWAIN drivers

- Easy integration with third-party software

Compact and User-Friendly

- Dimensions (H x W x D): 4.7" x 16.7" x 9.7" (with trays closed)

- Minimalistic design helps maximize desk space with No lengthy feed or eject trays

- User-friendly control panel for Selectable scan tasks with Batch scanning abilities

Productive and Efficient

- Scans up to 60 pages/120 images per minute in color, B&W, and grayscale

- Suggested daily volume of Approximately 7,500 scans

- MultiStream For saving and sending files in different formats

Precise Image Capture

- Auto Color Detection

- Text Enhancement capability improves legibility

- Folio mode for scanning oversized documents

- Shadow Cropping

- Deskew / straighten scanned images

- Auto Resolution setting for scanning mixed batches of text documents and photographs

Environmentally Conscious

- Meets ENERGY STAR guidelines

- Eu RoHS compliant

- WEEE compliant

Specifications

Scanning

Maximum scan size: 300 x 432 mm
Optical scanning resolution: 600 x 600 DPI
Colour scanning: Yes
Duplex scanning: Yes
Input colour depth: 24 bit
Output greyscale depth: 8 bit
Greyscale levels: 256
ADF scan speed (b/w, A3): 60 ppm
ADF scan speed (colour, A3): 60 ppm
Black/white scanning colour modes: Grayscale

Design

Scanner type: Sheet-fed scanner
Product colour: White
Touchscreen: No

Performance

Sensor type: CMOS CIS
Light source: RGB LED
Maximum duty cycle: 7500 pages per month
Scan drivers: ISIS, TWAIN

Paper handling

Maximum ISO A-series paper size: A3

Ports & interfaces

USB port: Yes
USB version: 2.0
Standard interfaces: USB 2.0

Power

Power supply type: AC
Power consumption (typical): 32.5 W
Power consumption (off): 0.5 W
Power consumption (PowerSave): 2.5 W
AC input frequency: 50 - 60 Hz
Input voltage: 100-240 V

Weight & dimensions

Width: 424 mm
Depth: 246 mm
Height: 120 mm
Weight: 6.1 kg

Packaging content

Cables included: AC, USB
Quick start guide: Yes
AC adapter included: Yes

Sustainability

Sustainability certificates: ENERGY STAR

System requirements

Windows operating systems supported: Yes

Operational conditions

Operating relative humidity (H-H): 20 - 85%

Other features

Compliance certificates: RoHS
