Drag to turn · 6 views

CanonScanners

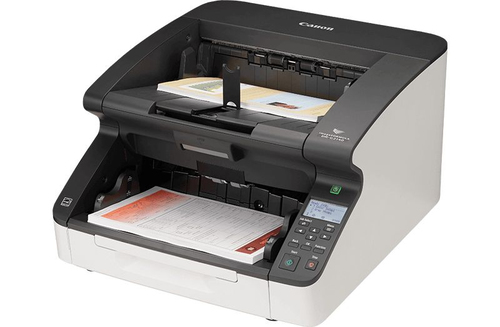

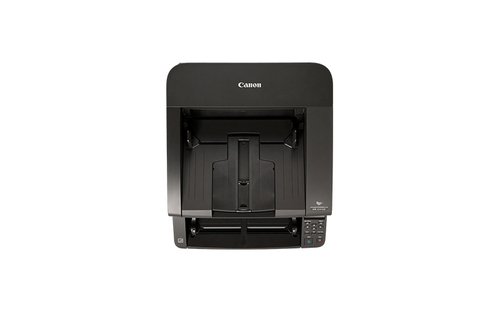

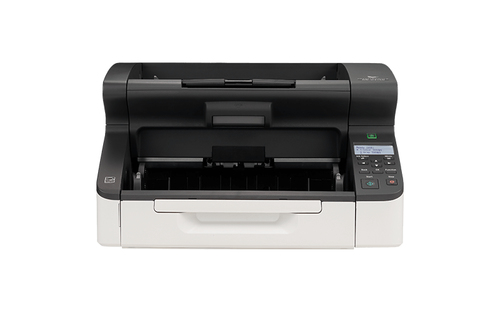

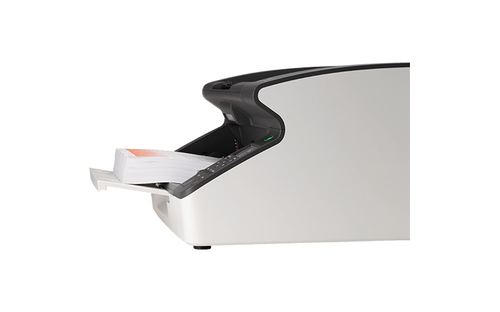

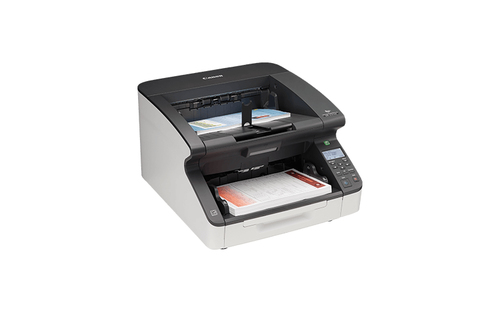

imageFORMULA DR-G2140 Sheet-fed scanner 600 x 600 DPI A3 Black, White

Part # 3149C002UPC 01380330829755.1 lb

Scanner type: Sheet-fed scanner 600 x 600 DPI
Colour scanning Duplex scanning
Built-in display
A3
Maximum scan size: 305 x 432 mm Sensor type: CIS
USB port Ethernet LAN

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Ultra-fast model takes production scanning to the next level

Optimised for customers who require exceptional high-speed productivity, superior image quality and dependable feeding performance, this A3 scanner has been created to excel in demanding environments

Productivity

Ultra-efficient scanner outputs up to 280 images per minute

Reliability

Robust, durable paper feed and transport rollers can deliver up to 70,000 scans per day

Image quality

Advanced image-processing tools deliver consistently crisp, clear, high-quality images

Specifications

Scanning

Maximum scan size: 305 x 432 mm
Optical scanning resolution: 600 x 600 DPI
Colour scanning: Yes
Duplex scanning: Yes
Output colour depth: 24 bit
Output greyscale depth: 8 bit
ADF scan speed (b/w, A3): 145 ppm
ADF scan speed (colour, A3): 145 ppm
Duplex ADF scan speed (b/w, A4): 290 ipm
Duplex ADF scan speed (colour, A4): 290 ipm

Design

Scanner type: Sheet-fed scanner
Product colour: Black, White
Built-in display: Yes

Performance

Sensor type: CIS
Light source: RGB LED
Daily duty cycle (max): 70000 pages
Scan drivers: ISIS, TWAIN, WIA
Scanning noise level: 54 dB

Input capacity

Standard input capacity: 500 sheets

Paper handling

Long-paper mode: Yes
Maximum ISO A-series paper size: A3
Auto Document Feeder (ADF) media weight: 20 - 209 g/m²

Ports & interfaces

USB port: Yes
USB version: 3.2 Gen 2 (3.1 Gen 2)
Standard interfaces: Ethernet, USB 3.2 Gen 1 (3.1 Gen 1)

Network

Ethernet LAN: Yes

Power

Power supply type: AC
Power consumption (typical): 66.5 W
AC input frequency: 50 - 60 Hz
Sleep mode: Yes
Input voltage: 220 - 240 V
Power consumption (sleep): 3.5 W

Weight & dimensions

Width: 480 mm
Depth: 569 mm
Height: 315 mm
Weight: 25 kg

Packaging content

Bundled software: Canon CaptureOnTouch, Kofax VRS Professional

Sustainability

Sustainability certificates: EPEAT Gold

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1
Server operating systems supported: Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016

Operational conditions

Operating temperature (T-T): 10 - 35 °C
Operating relative humidity (H-H): 20 - 80%
Operating temperature (T-T): 50 - 95 °F

Downloads

Product brochure (PDF)
