CanonScanners

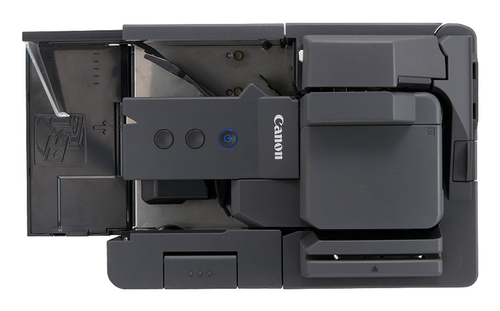

imageFORMULA CR-150 ADF scanner 200 x 200 DPI Graphite

Part # 1721C001UPC 01380328286312.1 lb

Scanner type: ADF scanner 200 x 200 DPI
Colour scanning Duplex scanning
Maximum scan size: 108 x 245 mm Sensor type: CMOS CIS
USB port
Power supply type: AC 23 W

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

imageFORMULA CR-150

Quickly scan up to 150 cheques per minute with this compact MICR and image scanner with built-in imprinter and card scanning slot.

Cheque scanning in front of the customer

Cheque and vouchers scanner that’s perfect for retail and banking. Its small footprint makes it great for confined spaces, and it can process 150 cheques per minute – 12,000 per day – and also perform colour scans of ID and bank cards.

Fast and compact scanner

High-speed performance from a device whose footprint is just a little more than A5, enabling up to 150 cheques per minute to be scanned in-branch at the counter.

Verified scanning

The cheque code data is scanned by magnetic ink character recognition (MICR) and also by zonal OCR of scanned image – a unique algorithm is applied to ensure accuracy.

Card scanning capability

There is a dedicated slot for plastic cards – ID or banking – to be scanned in colour, so that card-holders’ identities can be immediately confirmed and recorded.

Useful imprinting

Up to five lines of 60 characters, and bitmap imaging, can be printed on the back of cheques while they’re being scanned, with no loss of speed, for easy endorsement.

Magnetic card swipe option

There is an optional magnetic card swipe that can be installed on the CR-150 scanner, to help save yet more desk space.

Thermal Receipt Printer RP10

The optional RP10 Receipt Printer is the perfect companion to the CR-150 series for processing cheques and providing receipts from teller counter spaces. The RP10 is designed to be placed under the Cheque Scanner saving desk space, and supports both standard Windows driver and OPOS specifications.

Specifications

Scanning

Maximum scan size: 108 x 245 mm
Optical scanning resolution: 200 x 200 DPI
Enhanced scan resolution: 300 x 300 DPI
Colour scanning: Yes
Duplex scanning: Yes
Input colour depth: 24 bit
Greyscale levels: 256
ADF scan speed (b/w, A4): 150 ppm
ID card resolutions: 600 x 600 DPI
Black/white scanning colour modes: Grayscale

Design

Scanner type: ADF scanner
Product colour: Graphite
Built-in display: No

Performance

Sensor type: CMOS CIS
Light source: RGB LED
Daily duty cycle (max): 12000 pages
Built-in OCR: Yes
Scan to: PC
Scan drivers: ISIS, TWAIN
Ultrasonic sensor: Yes

Input capacity

Auto document feeder (ADF) input capacity: 150 sheets

Paper handling

Long-paper mode: Yes
Media thickness (min): 0.08 mm
Auto Document Feeder (ADF) media weight: 64 - 157 g/m²
Maximum scan width: 24.5 cm
Maximum scan length: 24.5 cm

Ports & interfaces

USB port: Yes
USB version: 2.0
USB connector type: USB Type-A, USB Type-B

Power

Power supply type: AC
Power consumption (typical): 23 W
Sleep mode: Yes
Input voltage: 220 - 240 V
Power consumption (sleep): 2.1 W

Weight & dimensions

Width: 170 mm
Depth: 239 mm
Height: 204 mm
Weight: 3.5 kg

Packaging data

Quantity per pack: 1 pc(s)

Packaging content

Cables included: AC

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8.1, Windows Vista
Server operating systems supported: Windows Server 2008 R2

Operational conditions

Operating temperature (T-T): 10 - 32.5 °C
Operating relative humidity (H-H): 20 - 80%

Other features

Certification: RoHS, Energy Star
