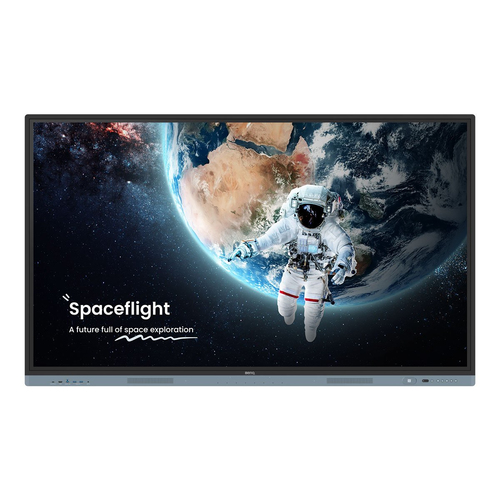

86", Black, 3840x2160
- Touchscreen 2.18 m (86") IPS Black
- Working area: 1428.5 x 803.5 mm
- 4K Ultra HD 3840 x 2160 pixels 16:9
- 450 cd/m² 1200:1 8 ms
- Built-in speaker(s) 20 W Built-in subwoofer Built-in microphone
- Ethernet LAN Near Field Communication (NFC)
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
BenQ Board Master
Explore new possibilities
Unleash your teaching potential with the best tools for today’s classrooms.
Google-powered lessons
Harness the power of BenQ hardware and Google services for education with the EDLA-certified BenQ Board Master RM04.
Easy app access
Enhance your lessons with interactive educational apps from Google Play.
Google essentials
The RM04 comes with Google Core Services such as Google Drive and Meet.
Collaboration tools
Fully utilize Google Docs, Sheets, and Slides on a large touchscreen display.
Convenient file access
Open files from your Google Drive to teach with material you’ve prepared beforehand, and save them right back onto the cloud so you can always have access to the latest files.
Enhanced security
Google’s security features on the RM04 prevent data leaks, phishing, malware, and data loss.
Personalized screen
You can change the layout of your Home screen by moving apps, putting them in folders, or dragging them to a new page.
Google Search
Look up information and access lesson materials in an instant without having to open the browser.
Widgets
Add widgets—like sticky notes and the calendar—to display the information that matters to you and your students.
Voice assistant
Let your voice guide your lessons using Google Assistant via the RM04 remote control.
AI tools for more inclusive lessons
Text-to-speech
Hear text as it is displayed or written on screen.
Multilingual translation
Translate text in numerous languages for more context-rich lessons.
OCR
Easily edit text from photos and scanned pages.
Specifications
Display
- Display diagonal
- 2.18 m (86")
- Display brightness
- 450 cd/m²
- Display resolution
- 3840 x 2160 pixels
- Anti-glare screen
- Yes
- HD type
- 4K Ultra HD
- Panel type
- IPS
- Native aspect ratio
- 16:9
- Contrast ratio (typical)
- 1200:1
- Contrast ratio (dynamic)
- 50000:1
- Response time
- 8 ms
- Touchscreen
- Yes
- Touch technology
- Multi-touch
- Touchscreen type
- Infrared
- Number of simultaneous touchpoints
- 50
- Touch system response time
- 5 ms
- Working area
- 1428.5 x 803.5 mm
- Surface material
- Tempered glass
- Low Blue Light technology
- Yes
- Hardness
- 9H
Computer system
- Operating system installed
- Android
- Operating system version
- 13
- Built-in processor
- Yes
- Processor architecture
- ARM Cortex A73 + ARM Cortex A53
- Processor cores
- 4
- User memory
- 64 GB
- RAM capacity
- 8 GB
- Graphics card family
- ARM
Audio
- Built-in speaker(s)
- Yes
- Number of built-in speakers
- 2
- Speaker power
- 20 W
- Built-in subwoofer
- Yes
- Subwoofer RMS power
- 16 W
- Built-in microphone
- Yes
Network
- Wi-Fi
- Yes
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Near Field Communication (NFC)
- Yes
Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 7
- Interface module USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
- 3
- USB 2.0 ports quantity
- 1
- USB connector type
- USB Type-A, USB Type-B, USB Type-C
- HDMI ports quantity
- 5
- USB Type-C ports quantity
- 4
- HDMI version
- 2.0
- HDMI output ports quantity
- 1
- DisplayPort version
- 1.2a
- DisplayPorts quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- VGA (D-Sub) ports quantity
- 1
- Line-in
- Yes
- Line-out
- Yes
- OPS slot
- 1
- S/PDIF out port
- Yes
- Microphone connectivity
- 3.5 mm
- Headphone connectivity
- 3.5 mm
- Audio output
- 3
Ergonomics
- Product colour
- Black
- VESA mounting
- Yes
- Panel mounting interface
- 600 x 400 mm
- Wall mountable
- Yes
Performance
- Temperature sensor
- Yes
Power
- Power consumption (typical)
- 95 W
- Power consumption (standby)
- 0.5 W
- AC input voltage
- 100-240 V
- AC input frequency
- 50/60 Hz
System requirements
- Security updates end date
- 30/10/2026
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage temperature (T-T)
- -20 - 60 °C
- Storage relative humidity (H-H)
- 10 - 90%
Weight & dimensions
- Width
- 1488.4 mm
- Depth
- 117.7 mm
- Height
- 937.6 mm
- Weight
- 40.6 kg
Packaging data
- Package width
- 1628 mm
- Package depth
- 208 mm
- Package height
- 1024 mm
- Package weight
- 47.8 kg
- Quantity per pack
- 1 pc(s)
Packaging content
- Pen tray included
- Yes
- Cables included
- HDMI, Power, USB, USB Type-C, VGA
- Remote control included
- Yes
- Mounting kit
- Yes
- Stylus included
- Yes
- Number of stylus pens
- 2
