4-port High Definition Digital video/audio Switch w/ Taiwano outputs/ Audio De-embedded Technology
- Allows up to four HDMI A/V sources to be connected to two HDMI displays
- HDCP 1.4 compatible, HDMI (3D, Audio Return Channel and Deep Color)
- Supports Dolby True HD and DTS HD Master Audio
- Audio Return Channel (ARC) function – connect an HDMI cable to the ARC port to send audio from your source device to your audio/video receiver
- OSD for system configuration setting and information display
- Instant switching between HDMI input sources via front panel pushbuttons or through the RS-232 serial control port
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
With more and more HDMI devices entering the Home Theater market, the need for simultaneous access to different HDMI A/V sources is becoming increasingly important. Now, the VS482 4- Port Dual View HDMI Switch offers an easy and affordable way to add HDMI capabilities to your home theater system by allowing you to switch easily between up to four HDMI A/V sources that are connected to up to two HDMI displays.
The VS482 supports four HDMI video input sources and two HDMI output displays. It is designed for two HDTV or audio/video receiver (AVR) applications. The VS482 complies with HDMI standards, and is designed to support 3D content, as well as Audio Return Channel (ARC) function. The VS482 also offers instant switching and has OSD display controls for video, audio, system configuration and information.
Specifications
Ports & interfaces
- Video port type
- HDMI
- HDMI ports quantity
- 6
- HDMI in
- 4
- Number of HDMI outputs
- 2
- Audio (L/R) out
- 2
- RS-232 ports
- 1
- Video in
- 4 x HDMI Type A Female (Black)
- Video out
- 2 x HDMI Type A Female (Black)
- DC-in jack
- Yes
Features
- Material
- Metal
- Product colour
- Black
- HDCP
- Yes
- Maximum operating distance
- 15 m
- Rack mounting
- Yes
- Supported graphics resolutions
- 1920 x 1080 (HD 1080)
- Supported video modes
- 1080p
- Bandwidth
- 6.75 Gbit/s
- Bandwidth
- 225 MHz
- Maximum resolution
- 1920 x 1080 pixels
- 3D
- Yes
- HD type
- Full HD
Weight & dimensions
- Width
- 437.2 mm
- Depth
- 158.6 mm
- Height
- 44 mm
- Weight
- 2.17 kg
- Depth (imperial)
- 15.8 cm (6.24")
- Height (imperial)
- 4.39 cm (1.73")
- Width (imperial)
- 43.7 cm (17.2")
Packaging content
- Remote control included
- Yes
- User guide
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Technical details
- Compliance certificates
- RoHS
More in Audio/Video Switches

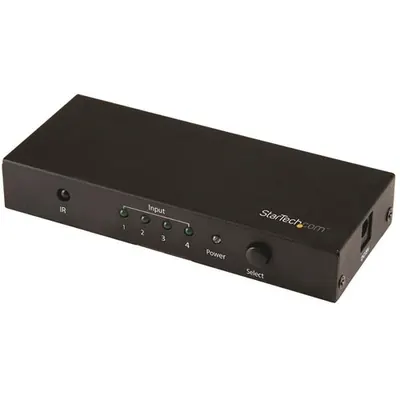

StarTech.com4-Port HDMI Switch - 4K 60Hz - Switch between four HDMI video sources VS421HD20

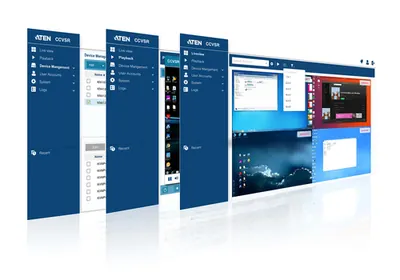

ATENVideo Session Recorder 8 NodeCCVSR08
ATEN4100CCVSR32

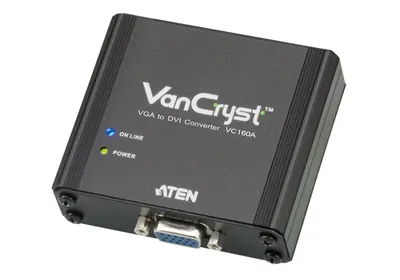

ATENThe VC160A is a VGA-to-DVI Converter that lets you view VGA source datVC160A

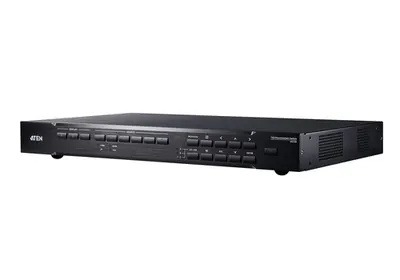

ATEN7 x 3 Seamless Presentation Matrix Switch with Scaler, Streaming, AudiVP2730

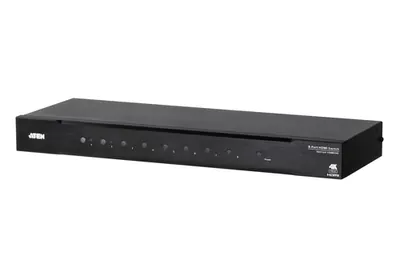

ATENVS0801H, 8-port True 4K HDMI Switch, offers an easy way to add HDMI caVS0801HB

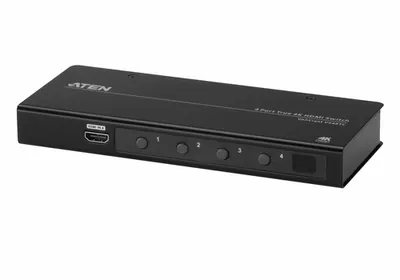

ATEN4-Port True 4K HDMI SwitchVS481C

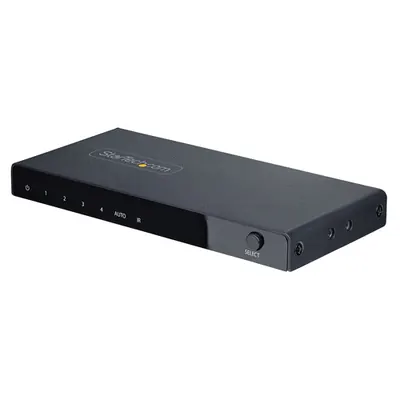

StarTech.com4-port 8K HDMI 2.1 Switch connects 4x HDMI sources to an HDMI display 4PORT-8K-HDMI-SWITCH
