ATENVideo Switches

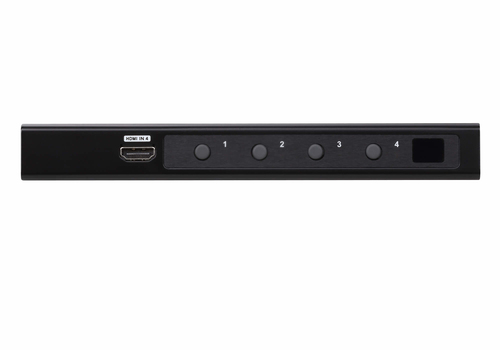

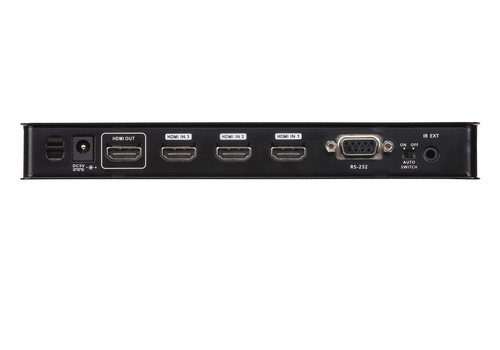

4-Port True 4K HDMI Switch
- Allows up to 4 HDMI sources to be connected to one HDMI display
- HDMI 2.0(3D, Deep Color, 4K); HDCP 2.2 compliant
- Superior video quality- True 4k resolutions of 4k x 2k @ 60 Hz (4:4:4)
- Supports HDR10+
- Supports IR extension
- Built-in bi-directional RS-232 serial port for high-end system control
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The ATEN VS481C is designed for applications that require the routing of 4 sources to one compatible display device. It enables the reliable transmission at video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Color up to 12-bit, and HD lossless audio formats. Integrator-friendly features include Auto Switching modes for auto port selection, bi-directional RS-232, and IR for remote device control.
Engineered to meet today’s demand of True 4K signal transmission and user- oriented design, the ATEN VS481C is a powerful solution for a wide range of settings, such as home theater, meeting rooms, trade shows, and shopping centers.
Specifications
Ports & interfaces
- Video port type
- HDMI
- HDMI ports quantity
- 4
- HDMI version
- 2.0
- Number of HDMI outputs
- 4
- RS-232 ports
- 1
- DC-in jack
- Yes
Features
- Material
- Metal
- Product colour
- Black
- Plug and Play
- Yes
- HDCP
- Yes
- Maximum refresh rate
- 60 Hz
- Maximum operating distance
- 3 m
- Bandwidth
- 18 Gbit/s
- LED indicators
- Yes
- Bandwidth
- 600 MHz
- Maximum resolution
- 4096 x 2160 pixels
- Remote control type
- IR
- 3D
- Yes
- HD type
- HD
- Colour depth
- 12 bit
- Input impedance
- 100 Ω
- HDCP version
- 2.2
Power
- Power consumption (typical)
- 5 W
- Power plug type
- Type A
Weight & dimensions
- Width
- 821 mm
- Depth
- 200 mm
- Height
- 250 mm
- Weight
- 470 g
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Logistics data
- Harmonized System (HS) code
- 85176990
- Products per master (outer) case
- 10 pc(s)
