Drag to turn · 3 views
ATENVideo Splitters

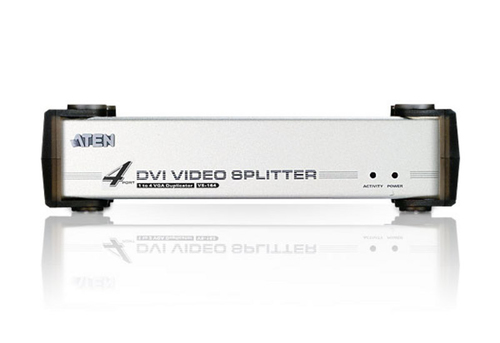

4 Port DVI Video/Audio Splitter
- Video port type: DVI Video ports quantity: 5 Black, Silver
- DC-in jack
- 1920 x 1200 pixels
- Maximum operating distance: 5 m
- Bandwidth: 255 MHz
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Features
- Connects computers with DVI graphics to multiple DVI compatible monitors or projectors.
- Fully compliant with DVI-Digital and DVI-Analog.
- Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors.
- Speaker enabled for audio enjoyment.
- Cascadable to 3 levels - provides up to 64 video signals.
- Cascade distance: Source to Device -1.8m, Device to Device-5m,Device to Display-5m.
- Installs in minutes.
- Maintains highest single link video resolution (up to 1920 x 1200).
- DDC, DDC2, DDC2B Compatible (Port 1 only).
- HDCP Compliant.
- OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
01
Package Contents
02
- 1x 4-Port DVI Video Splitter
- 1x 0AD6-1605-24EG Power Adapter
- 1x User Instructions
Specifications
Ports & interfaces

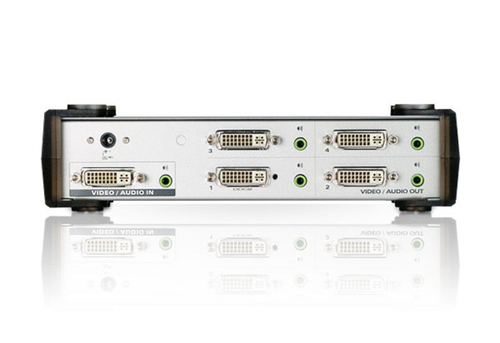

- Video port type
- DVI
- Video in
- 1 x DVI-I Female
- Video out
- 4x DVI-I
- Video ports quantity
- 5
- Audio ports quantity
- 5
- Connector(s)
- 4
- DC-in jack
- Yes
Features
- Product colour
- Black, Silver
- Housing material
- Metal
- Maximum resolution
- 1920 x 1200 pixels
- Full HD
- Yes
- Maximum operating distance
- 5 m
- Bandwidth
- 255 MHz
- Rack mounting
- Yes
- HDCP
- Yes
- Supported graphics resolutions
- 1920 x 1200 (WUXGA)
- Power LED
- Yes
- LED indicators
- Link, Power
- Mac compatibility
- Yes
Network
- Ethernet LAN
- No
Power
- Output voltage
- 5.3 V
- Power consumption (typical)
- 4 W
- USB powered
- No
Weight & dimensions
- Dimensions (WxDxH)
- 210 x 88 x 55 mm
- Weight
- 720 g
Packaging data
- Package type
- Box
Packaging content
- Cables included
- DC
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Technical details
- Audio input
- 1
- Audio output
- 4
- Resolution
- 1920 x 120 pixels
- Connector type
- DVI-I Female
- Number of connectors
- 4
- Maximum cable length
- 5 m
- Cascadable
- Yes
- Maximum video resolution
- 1920 x 1200 pixels
- Exterior material
- Plastic
Logistics data
- Harmonized System (HS) code
- 85176990
