ATENKVM Extenders
USB 2.0 DVI Single Link over 1 CAT Cable (100m) KVM Extender with Full USB2.0 support (up to
- HDBaseT™ 2.0 connectivity technology
- • Extends video, audio, USB and RS-232 signals via a single Ethernet cable
- • EDID Buffer for smooth power-up and the highest quality display
- • Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
- Long distance superior video quality
- • HDBaseT™ Standard mode up to 1920 x 1200 @ 100 m
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

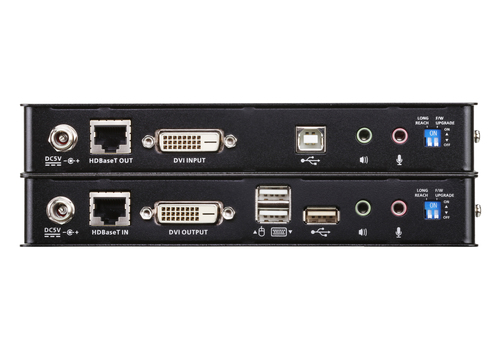

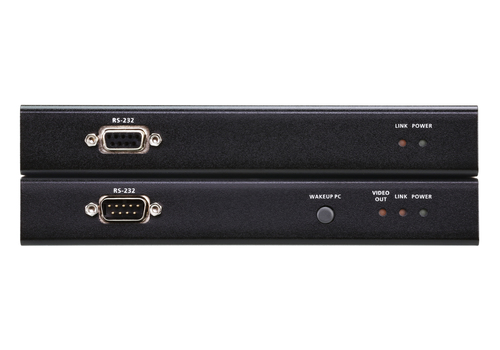

The ATEN CE620 USB DVI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to provide the most reliable transmission of video, audio, USB and RS-232 signals available on the market. Featured with a Long Reach mode, the CE620 delivers high-quality DVI video, PCM 2-channel digital audio, USB 2.0, and RS-232 signals up to 150 meters using a single Cat6/6a/ATEN 2L-2910 Cat 6 cable. With a simple cable installation supporting various signals, the CE620 is ideal for applications where convenient remote access is required – in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.
Specifications
Features
- Type
- Transmitter & receiver
- Connectivity technology
- Wired
- Maximum transfer distance
- 100 m
- Cable types supported
- Cat5e, Cat6, Cat6a
- Product colour
- Black
- Material
- Metal
Transmitter
- Transmitter local video port
- Yes
- Transmitter local video port type
- DVI-D
Receiver
- Receiver local video port type
- DVI-D
Power
- Power consumption (transmitter) (max)
- 3 W
- Power consumption (receiver) (max)
- 5.6 W
Weight & dimensions
- Transmitter width
- 18.2 cm
- Transmitter depth
- 12.3 cm
- Transmitter height
- 2.87 cm
- Transmitter weight
- 630 g
- Receiver width
- 18.2 cm
- Receiver depth
- 12.3 cm
- Receiver height
- 2.87 cm
- Receiver weight
- 640 g
Packaging content
- AC adapter included
- Yes
- Cables included
- DVI
- Manual
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Other features
- Firmware upgradeable
- Yes
