Drag to turn · 3 views
ATENAV Extenders
DVI HDBaseTLite Extender 1920 x 1080 up to 230ft / 70m
- HDBaseT Connectivity – extends a DVI 1080p connection up to 70 meters via a single Cat 6a/ATEN 2L-2910 Cat 6 cable
- DVI (3D, Deep color); HDCP 1.4 compliant
- Superior video quality –1920 x 1200@35m (Cat 5e/6) / 40m (Cat 6a); 1080p@60m(Cat 5e/6) / 70m (Cat 6a)
- HDBaseT Anti-Jamming – resists signal interference during video transmission using HDBaseT technology
- Plug-and-play
- Rack-mountable
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

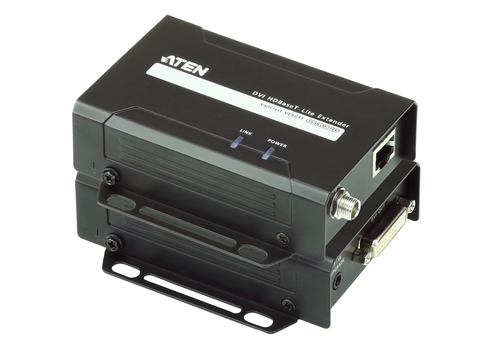

The VE601 DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.
The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, not to mention slip-resistant DC Jack lock mechanism, the VE601 can be installed nearly anywhere while ensuring peace of mind with its unerring reliability.
Specifications
Features
- Type
- AV transmitter & receiver
- Maximum resolution
- 1920 x 1200 pixels
- Cable types supported
- Cat5e, Cat6, Cat6a
- Maximum transfer distance
- 70 m
- Supported graphics resolutions
- 1920 x 1200 (WUXGA)
- Bandwidth
- 340 MHz
- HDCP
- Yes
- Material
- Metal
- Impedance
- 100 Ω
- Product colour
- Black
Ports & interfaces

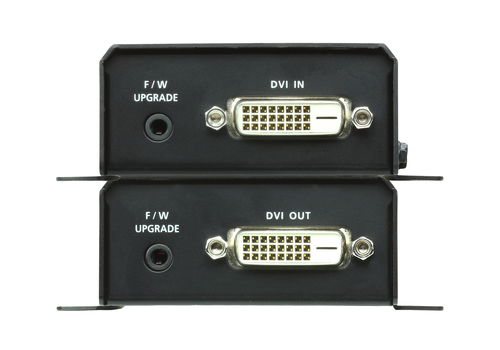

- DVI input ports
- 1
- DVI output ports
- 1

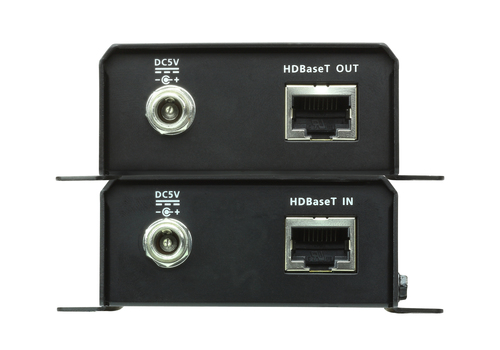

- DC-in jack
- Yes
Power
- AC input frequency
- 60 Hz
- Operating voltage
- 5 V
- Power consumption (transmitter) (max)
- 1.85 W
- Power consumption (receiver) (max)
- 4.23 W
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Receiver dimensions (WxDxH)
- 87 x 103 x 30 mm
- Receiver weight
- 250 g
- Transmitter dimensions (WxDxH)
- 87 x 103 x 30 mm
- Transmitter weight
- 250 g
Packaging content
- Manual
- Yes
Downloads
