10Port 4K HDMI Splitter

Part # VS0110HAUPC 6727920094576.03 lb

Connects one HDMI source to up to ten HDMI displays at the same time
HDMI (3D, Deep color, 4K); HDCP 1.4 compliant
Superior video quality – up to 4K resolutions (4096 x 2160 @ 60Hz; 4:2:0)
Long distance transmission from source to output - up to 15 m
Built-in bi-directional RS-232 serial control port for high-end system control
Supports Dolby True HD and DTS HD Master Audio

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

The VS0110HA 4K HDMI Splitter is a perfect solution for applications that require sending one source of high-definition 4K video to ten displays at the same time. The HDMI interface caters to most mainstream sources and sinks, such as DVD players, satellite set-top boxes, and any HDMI displays. Featuring ATEN EDID technology, the VS0110HA guarantees continuous EDID communication with connected devices and maintains optimum video outputs.

The VS0110HA 4K HDMI Splitter is HDCP (High-bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.

Specifications

Ports & interfaces

Video port type: HDMI
Video in: 1
HDMI version: 1.4
Video ports quantity: 10
Serial ports quantity: 1
DC-in jack: Yes

Features

Product colour: Black
Housing material: Metal
Full HD: Yes
3D: Yes
Maximum operating distance: 15 m
Bandwidth: 340 MHz
Rack mounting: Yes
HDCP: Yes
Power LED: Yes
Plug and Play: Yes
Supported video modes: 1080p
LED indicators: Link, Power
Certification: FCC, CE

Power

AC input voltage: 5 V
Power consumption (typical): 4.34 W

Weight & dimensions

Dimensions (WxDxH): 157.8 x 437.2 x 44 mm
Weight: 2.1 kg

Packaging content

Manual: Yes
User guide: Yes
AC adapter included: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): 20 - 60 °C
Operating relative humidity (H-H): 0 - 80%

Technical details

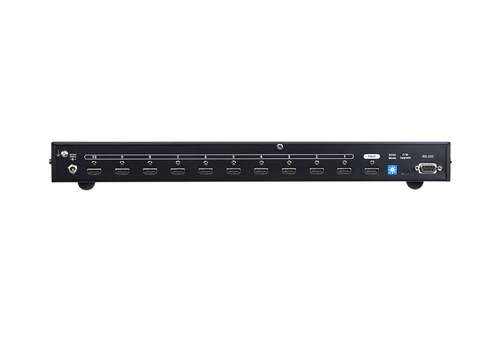

Technical features: 1x RS233, 1x Micro USB, 1x DC IN, 1x HDMI In, 10x HDMI Out
Maximum video resolution: 4096 x 2160 pixels
Compliance certificates: RoHS
