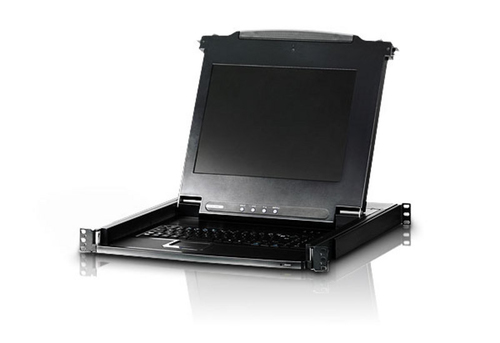

CL1000M rack console 43.2 cm (17") 1280 x 1024 pixels Black
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Features
- Integrated KVM console with 17" LCD monitor - in a Slideaway™ housing
- LCD module rotates up to 115 degrees for a more comfortable viewing angle
- Slideaway™ housing is less than 1U - with top and bottom clearance for smooth operation in a 1U high system rack

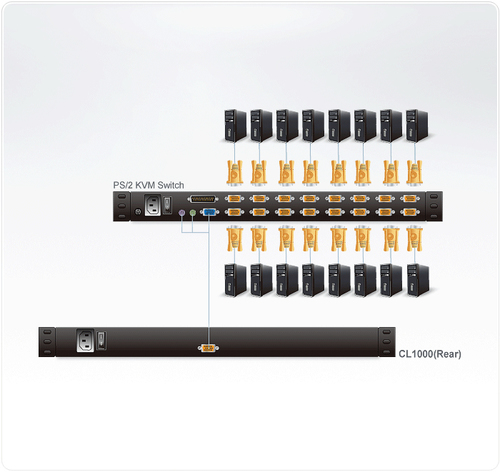

- Compatible with most PS/2 KVM Switches
- Internal power built in
- Adjustable depth to fit within a rack
- High video resolution:
- Up to 1280 x 1024 @75Hz
- Supports DDC, DDC2, DDC2B
- DDC emulation - VGA settings of every connected computer are automatically adjusted for optimal output to the LCD monitor
- Keyboard Language support: English(US); English(UK); German; German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean; Swedish; Italian; Russian; Hungarian
- Improved design - single person installation (optional)
- Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD
Package Contents
- 1x CL1000 with Standard Rack Mount Kit
- 1x 2L-5202P PS/2 KVM Cable Set
- 1x 1ADP-0005-005G Power Cord
- 1x User Instructions
Specifications
Display
- Display diagonal
- 43.2 cm (17")
- Display resolution
- 1280 x 1024 pixels
- Display
- LCD
Technical details
- Product colour
- Black
Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
Weight & dimensions
- Width
- 480 mm
- Height
- 534 mm
- Depth
- 44 mm
- Weight
- 12.3 kg
