ATENMatrix Switch Accessories

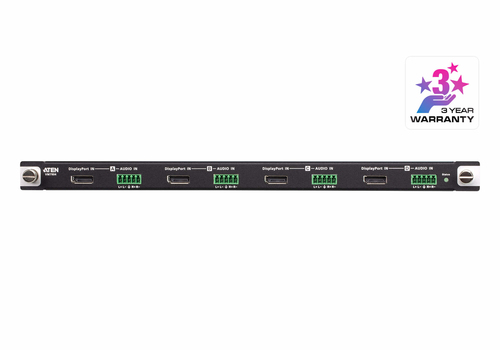

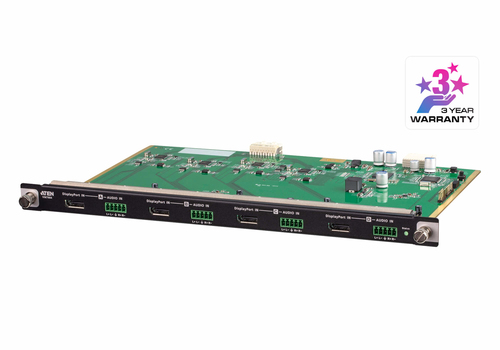

4-Port DesPlay Input Board
- Compatible with the VM1600A / VM3200; mix and match with modular I/O boards of any type for optimum flexibility
- Superior video quality – up to 4096 x 2160 / 3840 x 2160 @ 30 Hz (4:4:4)
- Audio-enabled - DisplayPort audio can be exracted and stereo audio can be embedded
- Support DP1.1 with data rate up to 10.8 Gbps (2.7 Gbps per lane)
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The VM7904 is a 4K DisplayPort Input Board that works with an ATEN Modular Matrix Switch to offer an easy way that routes 4 DisplayPort video and audio sources to up to 16 or 32 displays. In addition to the DisplayPort interface that carries digital A/V signal, the VM7904 also provides 4 stereo audio input ports that allow stereo audio to be routed independently or embedded for digital output.
1x VM7904 4-Port 4K DisplayPort Input Board
01
4x Terminal Blocks
1x User Instructions
Specifications
Design
- Product type
- Input board
- Product colour
- Black, Green
- Material
- Metal
Ports & interfaces
- DisplayPorts quantity
- 4
Power
- Power consumption (typical)
- 7.18 W
Weight & dimensions
- Width
- 238 mm
- Depth
- 352 mm
- Height
- 23.3 mm
- Weight
- 550 g
Packaging data
- Package width
- 285 mm
- Package depth
- 426 mm
- Package height
- 57 mm
- Package weight
- 910 g
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 0 - 80%
- Storage temperature (T-T)
- -20 - 60 °C
Technical details
- Compliance certificates
- RoHS
Logistics data
- Products per master (outer) case
- 2 pc(s)
- Master (outer) case gross weight
- 2.25 kg
- Master (outer) case length
- 440 mm
- Master (outer) case width
- 300 mm
- Master (outer) case height
- 138 mm
- Master (outer) case net weight
- 1.1 kg
