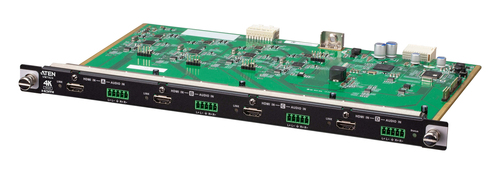

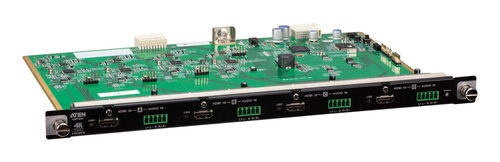

4-Port True 4K HDMI Input Board

Part # VM7824UPC 672792011368Warranty: 3 Years2.02 lb

Compatible with the VM Modular Matrix Switches; mix and match with modular I/O boards of any type for optimum flexibility
True 4K Resolutions – handles uncompressed video resolutions up to 3840 x 2160 / 4096 x 2160 @ 60Hz (4:4:4)*
True 4K EDID Expert – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
Audio-enabled, HDMI audio can be extracted and stereo audio can be embedded
Cable Quality Tester – examines the HDMI cable quality
HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

The VM7824 is a True 4K HDMI input board that works with an ATEN Modular Matrix Switch to offer an easy way to route 4 HDMI audio/video sources to 4 displays with True 4K high-definition images support. In addition to the HDMI interface that carries digital A/V signal, the VM7824 also provides 4 stereo audio input ports that enable stereo audio embedding.

All of ATEN’s VM series input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The VM series input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for multi-interface video applications.
