ATENMatrix Switch Accessories

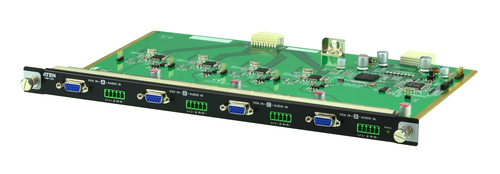

4Port VGA input card
- Connects up to 4 VGA or Component inputs
- Supports RGBHV / RGBS/ YCbCr/ YPbPr input signals
- Hot-swappable design for easy integration of I/O boards
- Compatible with the VM1600 and can be mixed with any modular output boards for optimum flexibility
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The VM7104 4-Port VGA Input Board offers an easy way to route 4 VGA video and audio sources up to 16 displays, when used in combination with the ATEN Modular Matrix Switch. The VM7104 supports RGBHV / RGBS/ Y CbCr/ YPbPr input signals; stereo audio that can be embedded into HDMI Audio output. The board is built with a hot-swappable design that is compatible with the VM1600, so that the unit doesn’t need to be powered off when the board is changed.
Specifications
Design
- Product type
- Input board
- Product colour
- Black, Green
- Material
- Metal
Ports & interfaces
- VGA (D-Sub) ports quantity
- 4
Power
- Power consumption (typical)
- 7.1 W
Weight & dimensions
- Width
- 238 mm
- Depth
- 352 mm
- Height
- 23.3 mm
- Weight
- 560 g
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 0 - 80%
- Storage temperature (T-T)
- -20 - 60 °C
