32 x 32 Modular Digital Matrix Chassis

Part # VM3200UPC 67279200697553.34 lb

Connects any of 32 video sources to any of 32 displays in combination with ATEN Modular Matrix Solutions
Supports 4K resolutions –up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)
Scaler –features a video scaling function to convert input resolutions to the optimum display resolutions
Seamless Switch™ –features close-to-zero second switching that provides continuous video streams, real-time switching and stable signal transmissions*
Video Wall –allows you to create custom video wall layouts via intuitive web GUI
Live Streaming –supports single source live streaming via web GUI for convenient evaluation of display output

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

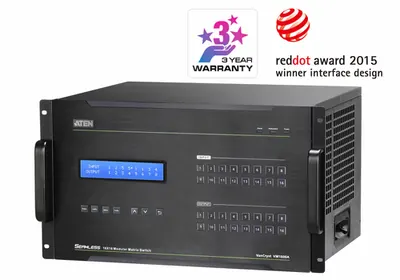

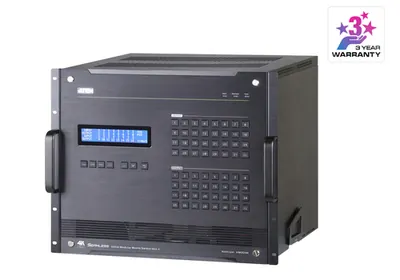

The VM3200 Modular Matrix Switch offers advanced access and real-time control of multiple local and remote A/V input devices and displays from a single chassis. The VM3200 allows users to independently switch and route video and/or audio content directly to various monitors, displays, projectors, and/or speakers simply by pressing front panel pushbuttons. A built-in Scaler encodes the video format in order to provide seamless, real-time switching. The front panel LCD shows a quick view of active port connections. The switch also includes an option to select an EDID Mode that yields the best resolution across different monitors.

The VM3200 is easily expandable and accommodates a lineup of hot-swappable ATEN I/O boards. Equipped with automatic signal conversion, it allows various combinations of digital video interfaces, including HDBaseT, DisplayPort, HDMI, DVI, 3G-SDI, and VGA. This makes it ideal for large-scale A/V applications such as broadcasting stations, traffic and transportation-related control rooms, emergency service centers, and any application that requires customizable, high-speed A/V signal routing.
