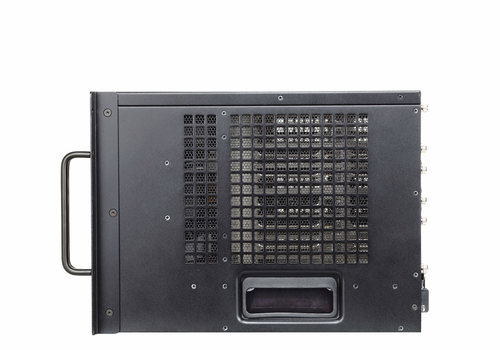

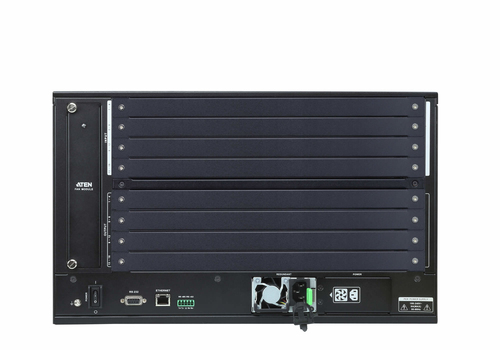

16 x 16 Modular Digital Matrix Chassis

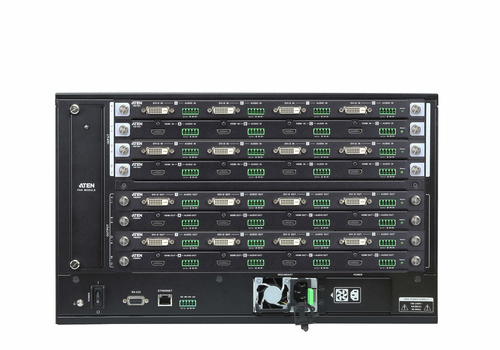

- Connects any of 16 video sources to any of 16 displays in combination with ATEN Modular Matrix I/O Boards
- Multiple means for system configuration including front-panel pushbuttons, RS-232/422/485 control, and Ethernet connections for web GUI or Telnet
- View and control via ATEN Video Matrix Control App in a swift and agile way
- 4K resolutions –up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)*
- Scaler –features a (4K) video scaling function to convert input resolutions to the display’s native resolutions*
- Seamless Switch™ –features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The ATEN Modular Matrix Solution Series comprises the VM1600A/VM3200 Modular Matrix Switch in tandem with a range of hot-swappable I/O boards. The solution offers real-time control and advanced access to manage 16/32 video sources and 16/32 displays simultaneously, through modular I/O boards in a single chassis. Empowered by ATEN Seamless Switch™ technology, the VM1600A/VM3200 video matrix switches incorporate a speed-progressive video switching function and a unique scaler that integrates seamlessly with video wall systems.
The ATEN Modular Matrix Solution is easily expandable and ideal for large-scale A/V applications such as broadcasting stations, traffic and transportation-related control rooms, emergency service centers, and any application that requires customizable, high-speed A/V signal routing.
Boasting a sophisticated and intuitive design to deliver the best audio/visual distribution and control, reliability and lowest maintenance costs, the solution also incorporates ATEN’s Red Dot Award-winning GUI that can be accessed from anywhere over a network or the internet. Configuring a video wall or digital signage installation has never been easier.
Specifications
Ports & interfaces
- HDMI ports quantity
- 32
- RJ-45 input ports
- 1
- RS-232 ports
- 1
Features
- Material
- Metal
- Product colour
- Black
- HDCP
- Yes
- Supported graphics resolutions
- 3840 x 2160, 4096 x 2160
- Bandwidth
- 15.2 Gbit/s
- LED indicators
- Yes
- Maximum resolution
- 4096 x 2160 pixels
- 3D
- Yes
- HD type
- 4K Ultra HD
- Rack capacity
- 6U
- HDCP version
- 2.2
Power
- AC adapter input voltage
- 100 - 240 V
- AC adapter frequency
- 50/60 Hz
- Power consumption (typical)
- 460 W
Weight & dimensions
- Width
- 482 mm
- Depth
- 466.6 mm
- Height
- 265.9 mm
- Weight
- 15.1 kg
Packaging content
- User guide
- Yes
- Cables included
- AC
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
