ATENSerial Switch Boxes

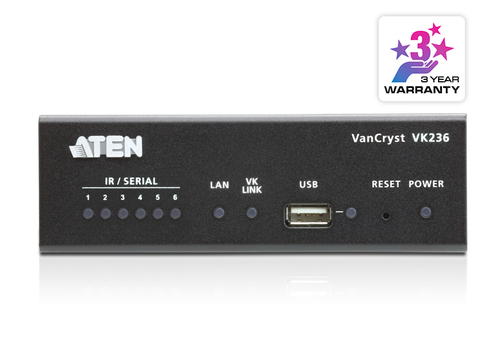

6-Port IR/Serial Expansion Box
- Provides 6 IR/Serial ports to expand the ATEN Control System

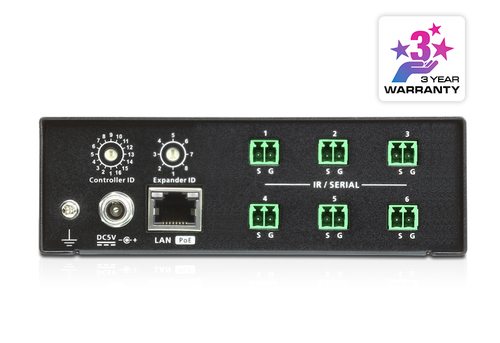

- ID Switch pairs the VK236 with a controller to instantly configure the network settings
- Up to eight VK236 expansion boxes can be added to a single Control Box
- Supports Power over Ethernet (PoE) or DC power supply
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The VK236 6-Port IR/Serial Expansion Box provides six additional IR/Serial ports for a flexible expansion of the ATEN Control System.

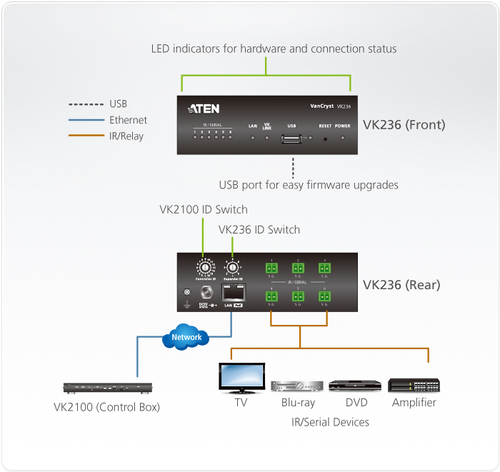

This allows users to control additional IR/serial devices in an environment where more devices are required. With the advantage of an Ethernet-based connection, the expansion box can be easily connected to the VK2100 Control Box via a LAN connection from a variety of locations across a network.
1x VK236 6-Port IR/Serial Expansion Box
01
1x Mounting Kit
02
6x Terminal Blocks
1x User Instructions
Specifications
Network
- Connectivity technology
- Wired
Technical details
- Storage temperature (T-T)
- -20 - 60 °C
- Manual
- Yes
- Package height
- 160 mm
- Package width
- 59 mm
- Package weight
- 715 g
- Package depth
- 239 mm
- Product colour
- Black
- Master (outer) case height
- 175 mm
- Master (outer) case length
- 325 mm
- Master (outer) case width
- 250 mm
- Master (outer) case net weight
- 3.35 kg
Ports & interfaces
- I/O ports
- 6 x RS-232, 1 x RJ-45, 1 x USB Type A
Operational conditions
- Operating relative humidity (H-H)
- 0 - 80%
- Operating temperature (T-T)
- 0 - 50 °C
Weight & dimensions
- Dimensions (WxDxH)
- 75.8 x 130 x 42 mm
- Weight
- 670 g
Logistics data
- Products per master (outer) case
- 5 pc(s)
- Master (outer) case gross weight
- 3.8 kg
