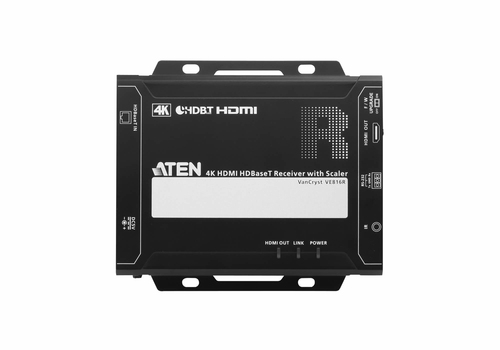

4K HDMI HDBaseT Receiver with Scaler up to 330ft / 100m
- Extends HDMI, RS-232, and IR signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
- HDCP 2.2 compatible
- Superior video quality:
- • 4K up to 100 m
- • 1080p up to 150 m
- HDBaseT Long Reach Mode – activated by RS-232 commands, Long Reach Mode extends signals up to 150 m, 1080p, via a single Cat 5e/6 cable
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
ATEN VE816R 4K HDMI HDBaseT Receiver with Scaler is designed to work with several ATEN HDBaseT Matrix Switches to extend 4K HDMI signals up to 100 m over a single Cat 5e/6/6a or an ATEN 2L-2910 Cat 6 cable, and at the same time, scales videos of different resolutions for optimal display.
Supporting bi-directional RS-232 channel and IR signaling pass-through, the VE816R provides users the path to remotely control the compatible devices. When working with ATEN HDBaseT Matrix, The VE816R features Frame Sync and Cable Quality Tester technologies to ensure smooth video and intuitive cable testing process.
When working with ATEN HDMI HDBaseT-Lite Matrix Switches, or Modular Matrix Switches with HDBaseT output boards, the VE816R supports video wall integration and ATEN’s Seamless Switch ™ function, providing users the ultimate A/V experiences.
Specifications
Features
- Type
- AV receiver
- Maximum resolution
- 4096 x 2160 pixels
- Cable types supported
- Cat5e, Cat6
- Maximum transfer distance
- 150 m
- Electrostatic Discharge (ESD) protection
- 15 kV
- LED indicators
- Yes
- Supported video modes
- 1080p
- Supported graphics resolutions
- 3840 x 2160, 4096 x 2160
- Bandwidth
- 10.2 Gbit/s
- Bandwidth
- 340 MHz
- HDCP
- Yes
- Material
- Metal
- 3D
- Yes
- Firmware upgradeable
- Yes
- Plug and Play
- Yes
- Impedance
- 100 Ω
- Product colour
- Black
- HDBaseT certified
- Yes
Ports & interfaces
- Connectivity technology
- Wired
- RJ-45 input ports
- 1
- Number of HDMI outputs
- 1
- Serial ports quantity
- 1
- Serial interface type
- RS-232
- Remote (IR) input
- 1
- DC-in jack
- Yes
Power
- Operating voltage
- 5 V
- Power consumption (typical)
- 9.09 W
- External power adapter
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Width
- 124.9 mm
- Depth
- 166 mm
- Height
- 29 mm
- Weight
- 670 g
Packaging content
- AC adapter included
- Yes
- Manual
- Yes
- IR blaster included
- Yes
- IR receiver included
- Yes
Technical details
- Compliance certificates
- RoHS
