4K HDMI HDBaseT Extender with POH up to 330ft / 100m
- HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cable

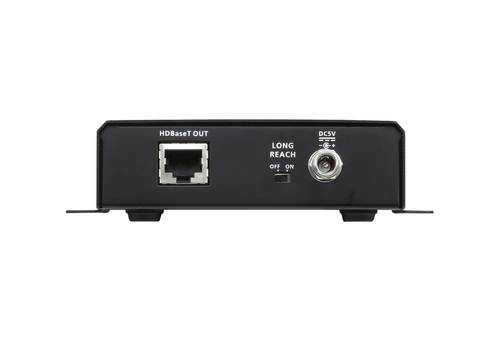

- Supports HDBaseT Long Reach Mode – Up to a maximum range of 150 meters @ 1080p
- 4k x 2k HDMI transmission distance up to 100m over Cat 6a or ATEN 2L-2910 Cat 6 cable
- HDBaseT Anti-jamming – resists signal interference during high - quality video transmission using HDBaseT technology
- POH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e / 6 / 6a cable
- Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

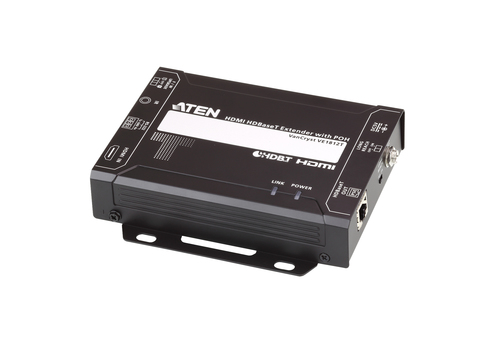

The VE1812 HDMI HDBaseT Extender with POH is the ideal solution for connecting equipment in remote locations up to 100m over a single Cat 5e / 6 / 6a cable. With Long Reach Mode enabled, the VE1812 can extend HDMI signal up to 150m @1080p.

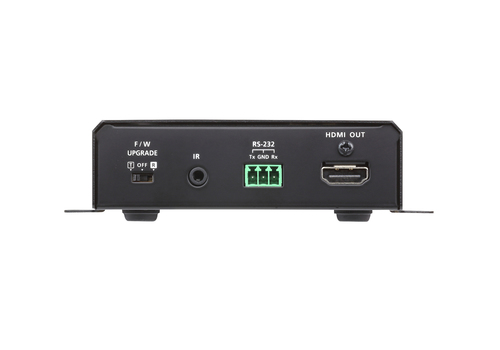

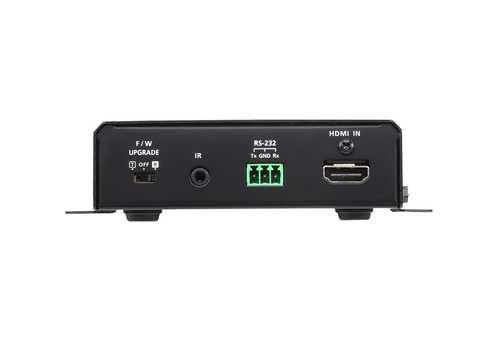

The VE1812 supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.
The VE1812 features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812 is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. The VE1812 is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.
Specifications
Features
- Type
- AV transmitter & receiver
- Maximum resolution
- 4096 x 2160 pixels
- Cable types supported
- Cat5e, Cat6, Cat6a
- Maximum transfer distance
- 150 m
- LED indicators
- Yes
- Supported video modes
- 1080p
- Supported graphics resolutions
- 3840 x 2160, 4096 x 2160
- Bandwidth
- 10.2 Gbit/s
- Bandwidth
- 340 MHz
- HDCP
- Yes
- Material
- Metal
- 3D
- Yes
- Firmware upgradeable
- Yes
- Consumer Electronics Control (CEC) support
- Yes
- Impedance
- 100 Ω
- Product colour
- Black
Ports & interfaces
- Connectivity technology
- Wired
- RJ-45 input ports
- 1
- RJ-45 output ports
- 1
- HDBaseT port
- Yes
- HDMI in
- 1
- Number of HDMI outputs
- 1
- RS-232 input ports
- 1
- RS-232 output ports
- 1
- Video in
- 1
- Video out
- 1
- 3.5 mm (1/8-inch) in
- Yes
- 3.5 mm (1/8-inch) out
- Yes
- Remote (IR) input
- 1
- Remote (IR) output
- 1
- DC-in jack
- Yes
Power
- Operating voltage (transmitter)
- 5 V
- Operating voltage (receiver)
- 5 V
- Power consumption (transmitter) (max)
- 4.3 W
- Power consumption (receiver) (max)
- 6.4 W
- External power adapter
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Receiver dimensions (WxDxH)
- 123 x 140.4 x 30 mm
- Receiver weight
- 450 g
- Transmitter dimensions (WxDxH)
- 123 x 140.4 x 30 mm
- Transmitter weight
- 470 g
Packaging content
- AC adapter included
- Yes
- Quick start guide
- Yes
Technical details
- Compliance certificates
- RoHS
