ATEN UCE3250 Drag to turn · 7 views
ATENInterface Cards/Adapters

4Port Cat 5 USB 2.0 Extender up to 165 ft.

Part # UCE3250UPC 6727920091121.21 lb

  • High-Speed USB 2.0 compliant with a data transfer rate of up to 480 Mbps
  • Extension distance of up to 50m over a Cat 5/5e/6 cable
  • Receives up to 4 USB peripherals of all types – flash drives, keyboards, mice, webcams, scanners, printers and more
  • Metal mechanical with wall mount design supports industrial deployment
  • Supports Windows®, OS X®, and Linux®
  • Plug- and- play
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

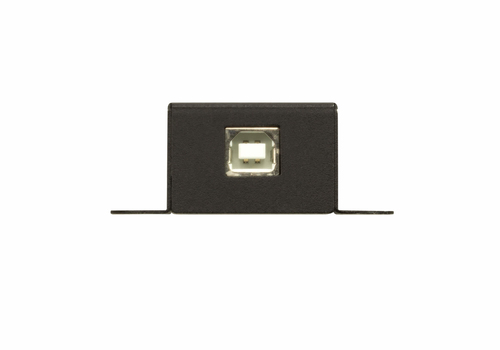

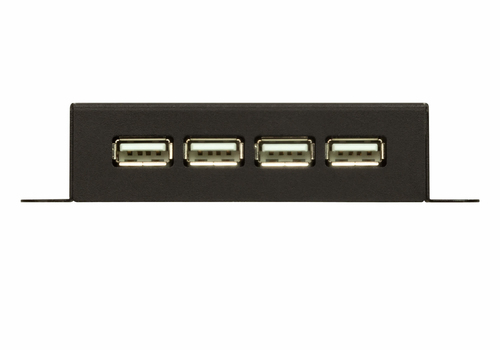

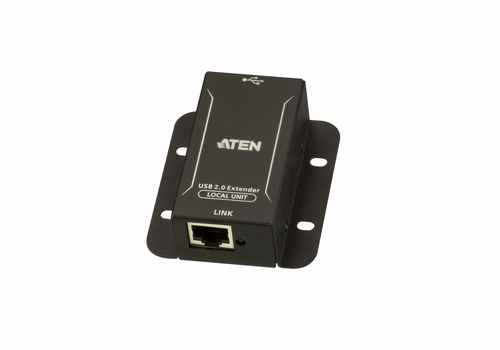

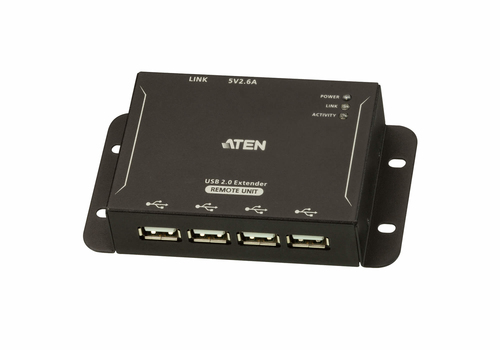

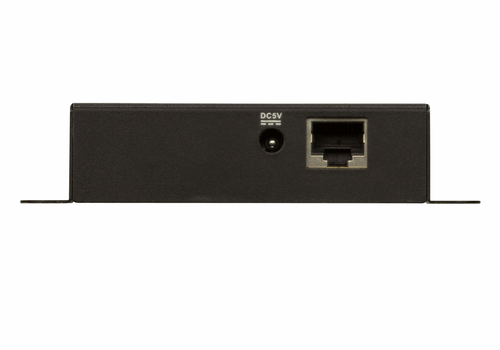

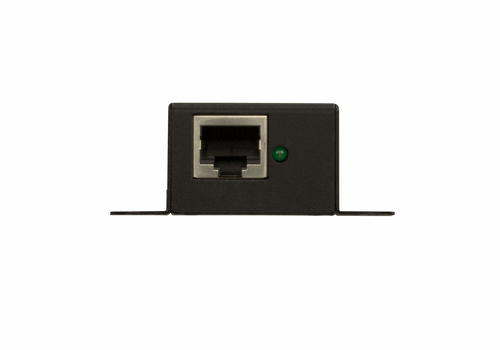

The UCE3250 4-port USB 2.0 Cat 5 Extender is a two-unit device that serves as a USB hub and a USB extender. The UCE3250 unit can connect as many as 4 USB peripherals from up to 50 meters away from your computer over a Cat 5 / 5e / 6 Ethernet cable.

The UCE3250 transmits data through signal packages with better compatibility and preserves the integrity of the data over long distances. The power supply at the remote UCE3250 unit helps provide sufficient power to any type of USB device, such as flash drives, keyboards, mice, webcams, scanners, or printers, etc.

With its durable metal housing, this high-quality USB extender provides a fast and flexible solution for industrial applications. In addition, the compact size and integrated wall mounting enables space-saving installation.

Specifications

Ports & interfaces

Port multiplier
Yes

Design

Product colour
Black
LED indicators
Activity

Features

Plug and Play
Yes

Power

USB powered
Yes

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 70 °C

Technical details

Compliance certificates
RoHS

Weight & dimensions

Width
63.3 mm
Depth
110.4 mm
Height
24.1 mm
Weight
160 g

Packaging data

Quantity per pack
1 pc(s)
Cables included
USB
Manual
Yes

Logistics data

Harmonized System (HS) code
84733020

Other features

Cable length
50 m
Relative humidity
0 - 80%
