16 Port KVM over IP switch, 2 IP users 1 Local User
- HTML 5 browser access and Dedicated Client software
- Virtual Media Support
- Panel Array Mode™ – monitors all ports in a grid display (both local and remote screens)
- Supports web-friendly KVM-over-IP access with HTML5 WebClient viewer
- Integrated with ATEN CC2000 Centralized Management Software and CCVSR Video Session Recording Software
- Laptop USB Console (LUC) – a dedicated USB port directly connects to a laptop for easy console operation
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

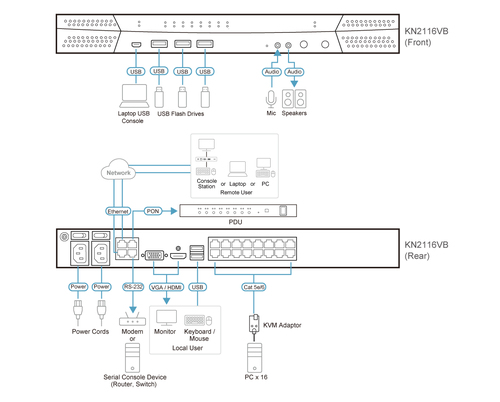

The KN series KVM over IP switch provides local console and remote over IP access for users to monitor and access their entire data center over a network. The KN series offers superior FHD video resolution up to 1920 x 1200, virtual media transmissions at double speed, FIPS 140-2 with level 1 security standards by using an embedded FIPS 140-2 certified OpenSSL cryptographic module. Equipped with dual on-board NICs, the KN series is built to ensure reliability and availability of remote access to all servers. The KN series can be remotely accessed via WinClient / JavaClient* at a console from a separated location for management and operation. ATEN also provides an iOS app - PadClient, whose intuitive interface makes it easy to connect to the KVM over IP switch and control computers direct from user's iPad. Please visit the PadClient webpage for more information
Specifications
Ports & interfaces
- Number of computers controlled
- 16
- Keyboard port type
- USB
- Mouse port type
- USB
- Display connection
- Yes
- Console ports
- HDMI, VGA (D-Sub)
- Console USB ports quantity
- 2
- Console HDMI ports quantity
- 1
- Console RJ-45 ports quantity
- 16
- USB 2.0 Type-A hub ports quantity
- 3
- USB connector type
- USB Type-A
- Serial port type
- RJ-45
- Serial ports quantity
- 1
- Audio connections
- Yes
- Headphone outputs
- 1
- AC-in ports quantity
- 2
- DC-in jack
- No
Network
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Cabling technology
- 10/100/1000Base-T(X)
Performance
- HD type
- Full HD
- Maximum resolution
- 1920 x 1200 pixels
- Number of users
- 3 user(s)
- Audio channels
- 2.0
Design
- Rack mounting
- Yes
- Rack capacity
- 1U
- Product colour
- Black
- Housing material
- Metal
- Cascadable
- Yes
- LED indicators
- Operation, Power, WAN
- Display switch button
- Yes
- Push button
- No
- Hot keys
- Yes
Display
- Built-in display
- No
Power
- Power source
- AC
- Input voltage
- 100 - 240 V
- External power adapter
- Yes
- Power plug type
- Type G
Certificates
- Waste Electrical and Electronic Equipment (WEEE) compliance
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Width
- 433.6 mm
- Depth
- 412.1 mm
- Height
- 440 mm
- Weight
- 5.18 kg
Packaging content
- Quick installation guide
- Yes
- AC adapter included
- Yes
- Rack mount kit
- Yes
- Rubber feet
- Yes
Other features
- Connectivity technology
- Wired
- IP control
- Yes
- Warranty period
- 3 year(s)
Logistics data
- Country of origin
- Taiwan
Downloads
