2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector
- One USB keyboard, mouse and one HDMI monitor control two HDMI computers
- Superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)
- Computer selection via remote port selector
- HDMI compliant; HDCP 2.2 compliant
- Supports USB hot-plugging
- The console USB ports can be used for USB peripheral sharing1
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Switching between two computers can be as easy as the push of a button. Refresh your workspace with the CS22H by setting up a desktop console with one set of keyboard/mouse/display for control over two computers via USB and HDMI connections, and you’re all set. The compact CS22H helps create an organized desktop with reduced cable clutter, and brings in vivid 4K viewing quality to lift up work performance.

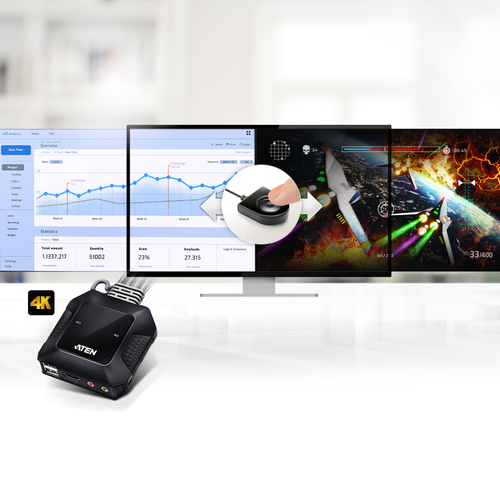

Superior AV Performance in Vivid 4K
The CS22H empowers your desktop operations with audiovisual enhancement with 4K DCI compliance and audio connectivity.

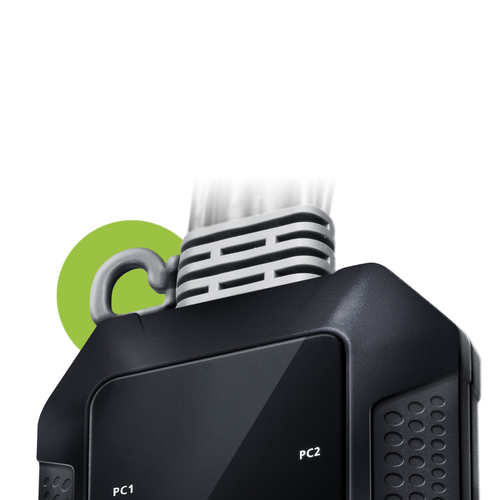

Space Efficient Desktop Setup
The compact and easy-hook design is helpful to expanding desktop workspace in an orderly fashion for improved work productivity.
Smooth Cross-Platform Integration
The CS22H enables the integration of different computer systems (Windows, Mac and Linux) that are accessible over one KVM console.

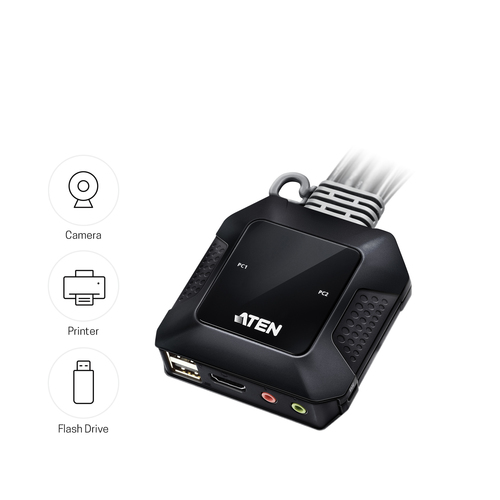

Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirement.
Plug in. Power on
The CS22H supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.
Specifications
Ports & interfaces
- Number of computers controlled
- 2
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- HDMI
- HDMI ports quantity
- 3
- Console ports
- 3.5mm headphone, 3.5mm mic, HDMI, USB A
- Console USB ports quantity
- 2
- Console HDMI ports quantity
- 1
- USB connector type
- USB Type-A
- Audio connections
- Yes
- Headphone outputs
- 3
- Number of microphone inputs
- 3
Performance
- HD type
- 4K Ultra HD
- Maximum resolution
- 4096 x 2160 pixels
- Video bandwidth
- 60 Hz
- HDCP
- Yes
- Hot-Plug support
- Yes
- Plug and Play
- Yes
- HDCP version
- 2.2
Design
- Rack mounting
- No
- Product colour
- Black
- Housing material
- Plastic
- Wired remote switch
- Yes
- Cable length
- 1.2 m
- Remote switch cable length
- 1.8 m
- LED indicators
- Yes
Display
- Built-in display
- No
Power
- Power source
- USB
- Input voltage
- 5 V
- Power consumption (typical)
- 3.47 W
System requirements
- Windows operating systems supported
- Yes
- Linux operating systems supported
- Yes
- Mac operating systems supported
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- Storage relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Width
- 84.2 mm
- Depth
- 83.4 mm
- Height
- 30.4 mm
- Weight
- 340 g
Packaging data
- Package width
- 55 mm
- Package depth
- 155 mm
- Package height
- 223 mm
- Package weight
- 420 g
Packaging content
- Quick installation guide
- Yes
- Manual
- Yes
Logistics data
- Master (outer) case net weight
- 6.8 kg
- Harmonized System (HS) code
- 85176200
- Master (outer) case width
- 328 mm
- Master (outer) case length
- 389 mm
- Master (outer) case height
- 330 mm
- Master (outer) case gross weight
- 9.3 kg
- Products per master (outer) case
- 20 pc(s)
